Запчасти Case IH 75XT (09-19) - SOUNDPROOFING - PANELS (EUROPE) (09) - CHASSIS

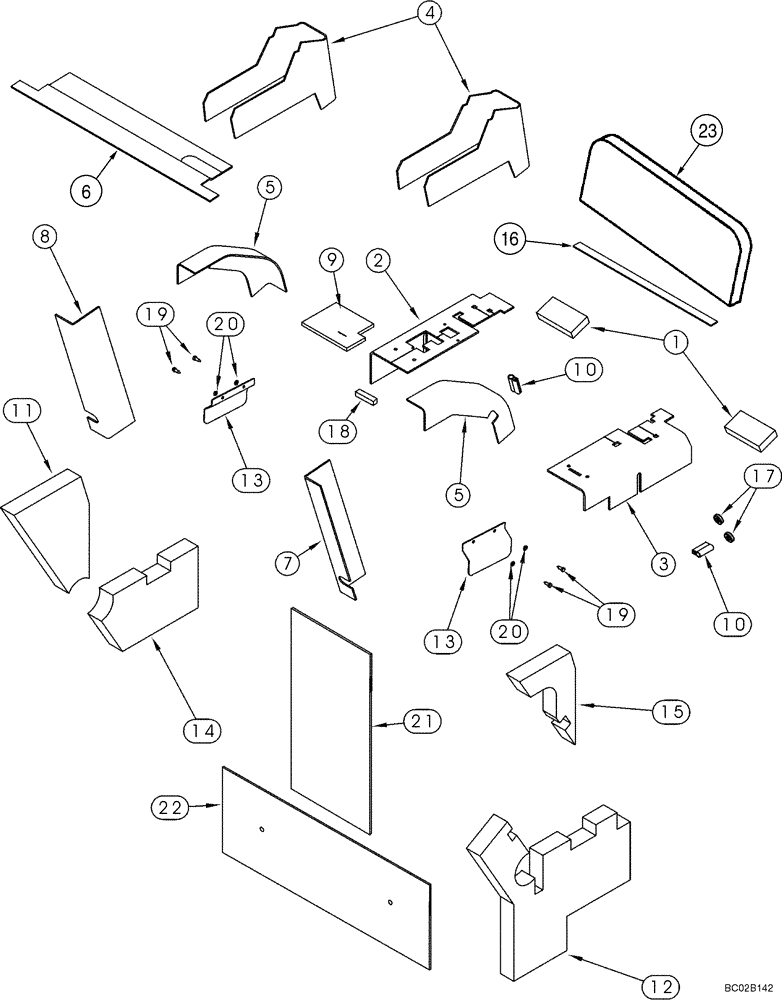

Схема запчастей Case IH 75XT - (09-19) - SOUNDPROOFING - PANELS (EUROPE) (09) - CHASSIS
2
22
17
1
5
13
20
5
3
8
11
15
16
4
21
12
23
13
9
18
20
10
6
14
19
19
7
10

Артикул

Название

Примечание

Количество

1

295007A1

SEAL

135 mm (5-3/8 inch); Console; See Figure 09-11

2шт.

2

308877A1

PAD

Console Barrier; Left Hand

1шт.

3

308879A1

PAD

Console Barrier; Right Hand

1шт.

4

308917A1

PAD

Console

2шт.

5

309011A1

SHEET

Upper Corner

2шт.

6

309701A1

SHEET

Hood Extension

1шт.

7

309702A1

SHEET

Extension; Right Hand

1шт.

8

309703A1

SHEET

Extension; Left Hand

1шт.

9

311222A1

LARGE PLATE

PLATE, LARGE Loader Lock Barrier

1шт.

10

311258A1

SEAL

50 mm (2 inch); Floor Plate

2шт.

11

311341A1

INSULATOR

Engine Compartment; Left Hand Upper

1шт.

12

311342A1

INSULATOR

Engine Compartment; Right Hand Lower

1шт.

13

311412A1

SHEET

Overlap Extension

2шт.

14

311641A1

INSULATOR

Engine Compartment; Left Hand Lower

1шт.

15

311642A1

INSULATOR

Engine Compartment; Right Hand Upper

1шт.

16

311869A1

BAND

520 mm (20-1/2 inch); Floor Plate

1шт.

17

313231A1

BAND

30 mm (1-1/4 inch); Cable Seal

2шт.

18

313278A1

BAND

50 mm (2 inch); Lock Slot Cover

1шт.

19

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

M6,3 st x 19

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

318165A1

INSULATOR

Upper

1шт.

22

318166A1

INSULATOR

Lower

1шт.

23

249026A1

INSULATOR

1шт.

Выбрано товаров: 23
