Запчасти Case IH 75XT (09-13) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS

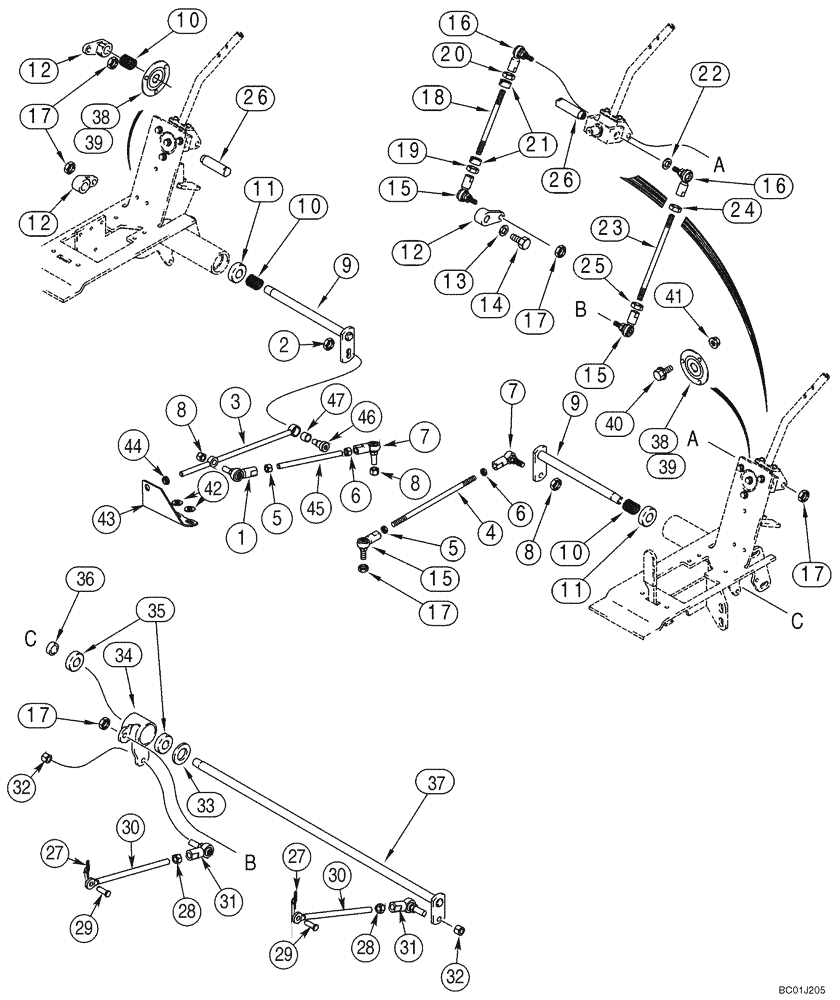

Схема запчастей Case IH 75XT - (09-13) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS
6
25
11
45
39
8
15
15
37
26
10
15
43
16
10
12
7
13
19
30
33
29
12
5
16
17
12
31
36
35
18
26
9
4
40
17
3
14
11
28
17
24
17
9
38
29
27
7
32
32
38
46
22
17
44
39
8
30
21
34
31
8
41
27
23
47
2
10
42
1
38
5
20
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITHOUT FOOT CONTROLS

1шт.

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

1шт.

2

232-4116

NUT,3/8"-16, GC

1шт.

3

330149A1

ROD

1шт.

4

259880A1

STEM

240 mm

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

2шт.

6

125-11011

NUT,3/8"-24, G5, LH

2шт.

7

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

8

232-4616

LOCK NUT,3/8"-24, GC

4шт.

9

238968A3

SHAFT

2шт.

10

229383A1

SPRING

Coil

3шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

4шт.

12

237773A1

LEVER ASSY.

3шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

15

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

5шт.

16

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

5шт.

17

232-4616

LOCK NUT,3/8"-24, GC

6шт.

18

187234A2

ROD

2шт.

19

425-116

NUT,3/8" - 24, Gr 5

2шт.

20

125-11011

NUT,3/8"-24, G5, LH

2шт.

21

255561A1

COLLAR ASSY.

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

23

180682A1

STEM

185,5 mm

2шт.

24

125-11011

NUT,3/8"-24, G5, LH

2шт.

25

425-116

NUT,3/8" - 24, Gr 5

2шт.

26

237774A1

SHAFT

2шт.

27

417860A1

COTTER PIN

2шт.

28

425-116

NUT,3/8" - 24, Gr 5

2шт.

29

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Models with Bi-Directional Self Leveling; See Figure 08-02A

2шт.

30

417363A1

LINK

Models With Bi-Directional Self Leveling; See Figure 08-02A

2шт.

31

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

2шт.

32

232-4616

LOCK NUT,3/8"-24, GC

2шт.

33

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

239908A4

CRANK

Incl. 34, 35

1шт.

34

318531A1

POWER ARM

1шт.

35

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

2шт.

36

240621A1

SPACER

1шт.

37

275022A1

SHAFT

1шт.

38

112380A1

BEARING ASSY

Incl 39

2шт.

39

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

1шт.

40

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

41

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

42

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

43

392597A1

BRACKET

Bushing Support

1шт.

44

330147A1

NYLON BEARING,11.1 mm ID x 15.9 mm OD x 5.1 mm

Nylon

1шт.

45

330142A1

ROD

Left Hand Control

1шт.

46

121-255

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

1шт.

47

337101A2

BUSHING

Bronze

1шт.

Выбрано товаров: 49
