Запчасти Case IH 75XT (09-12) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS

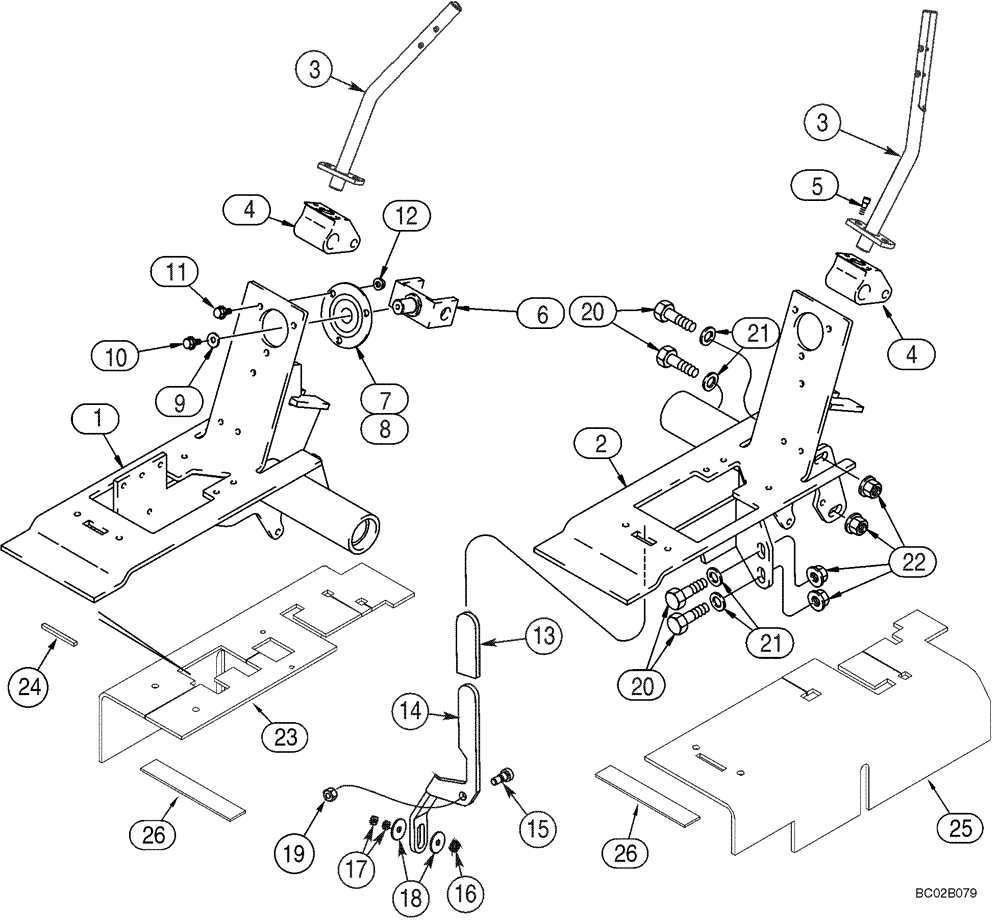

Схема запчастей Case IH 75XT - (09-12) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS
5
11
9
8
6
26
4
7
22
18
14
1
16
21
13
12
20
25
15
26
3
17
10
20
21
23
24
2
3
4
19

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITHOUT FOOT CONTROLS

1шт.

1

186308A2

SUPPORT

Left Hand

1шт.

2

179492A5

SUPPORT

Right Hand

1шт.

3

275024A1

LEVER

For Attaching Parts, See Figure 04-17, 04-18

2шт.

4

238357A3

PIVOT

2шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

6

237772A1

SUPPORT

2шт.

7

112380A1

BEARING ASSY

Incl 24

4шт.

8

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

1шт.

9

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

10

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

2шт.

11

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

13

D126613

HANDLE

1шт.

14

418663A2

LEVER

1шт.

15

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

16

418585A1

COIL SPRING

1шт.

17

225-14210

NUT,#10-32

2шт.

18

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

19

230-4215

NUT,5/16"-18, GA

1шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

22

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

23

308877A1

PAD

Left Hand Console; Models With Deluxe Heater

1шт.

24

313278A1

BAND

50 mm (2 inch); Lock Slot Cover; Models With Deluxe Heater

1шт.

25

308879A1

PAD

Right Hand Console; Models With Deluxe Heater

1шт.

26

313323A1

SEAL

Console; Models With Deluxe Heater

2шт.

Выбрано товаров: 27
