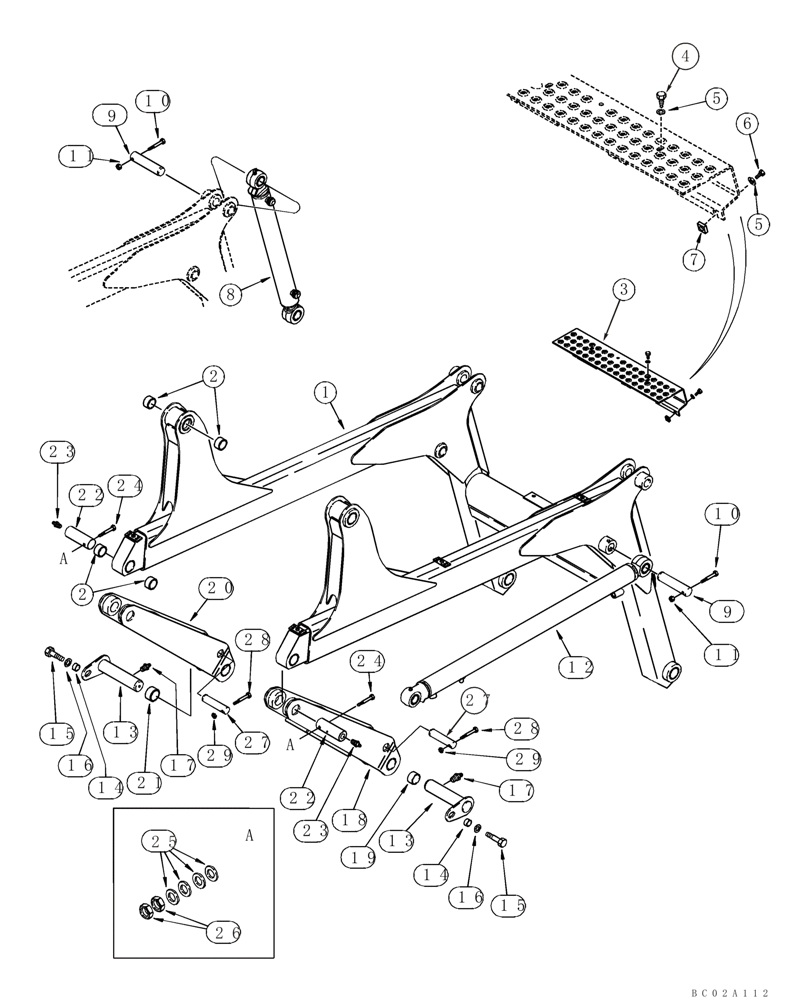

Запчасти Case IH 75XT (09-01) - FRAME - LOADER LIFT (NOV 14 2011 2:11PM) (09) - CHASSIS

276208A5

ARM, WITH LOADER; Incl. 1, 2; Used In Production Only; For Service Order 337837A2, REF 1

1шт.

87415618

LIFT ARM

Replaces 276208A5

1шт.

1

337837A2

ARM ASSY.

Frame; Incl. 2; Incl. Decals

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

3

87620408

PLATE

476 mm (18-3/4 in) wide; Replaces 432327A1

1шт.

4

779-14819

SELF-TAP SCREW,Hex Hd, M8 x 19

St 8 x 19

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

Replaces 614-8016

3шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

8

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk; Bucket Tilt; See Figure 08-12

2шт.

8

259694A3R

75XT, ASN JAF0318922

REMAN-HYD CYLINDER

2шт.

8

259694A3C

Return Number

CORE-HYD CYLINDER

2шт.

9

139089A1

PIN,35mm OD x 149mm L

4шт.

10

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

11

832-41410

NUT,M10 x 1.5, Cl 10

4шт.

12

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk; Loader Lift; See Figure 08-11

2шт.

12

336187A1R

REMAN-HYD CYLINDER

75XT ASN JAF0318922 (NA)

2шт.

12

336187A1C

CORE-HYD CYLINDER

Return number

2шт.

13

254431A2

PIN

Ear 4.52 mm thick

2шт.

14

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

15

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

17

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

18

277133A3

ROD, CONNECTING

Right Hand; Incl. 19

1шт.

19

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

20

277132A2

ROD, CONNECTING

Left Hand; Incl. 22

1шт.

21

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

22

179637A1

PIN,45mm OD x 134mm L

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

24

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

27

199896A1

PIN,35mm OD x 124mm L

2шт.

28

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

29

832-41410

NUT,M10 x 1.5, Cl 10

2шт.
