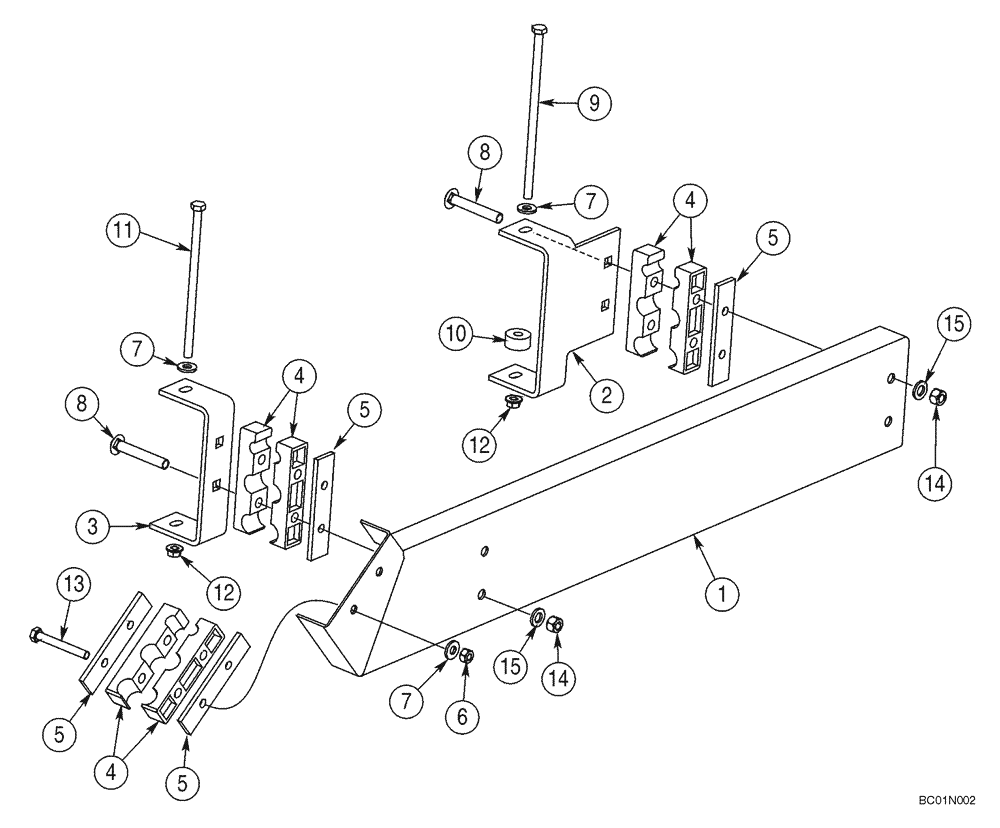

Запчасти Case IH 75XT (08-19A) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

COVER AND MOUNTING

1шт.

1

413169A2

COVER

1шт.

2

413168A2

BRACKET

1шт.

3

413167A2

BRACKET

1шт.

4

256974A2

FIXING BRACKET

6шт.

5

256976A1

BAR

4шт.

6

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

8

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

4шт.

9

814-10230

BOLT,Hex, M10 x 1.5 x 230mm, Cl 8.8

M10 x 230

1шт.

10

408046A1

SPACER

1шт.

11

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

M10 x 205

1шт.

12

411345A1

LOCK NUT

2шт.

13

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

14

832-41412

NUT,M12 x 1.75, Cl 10

M12

4шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
