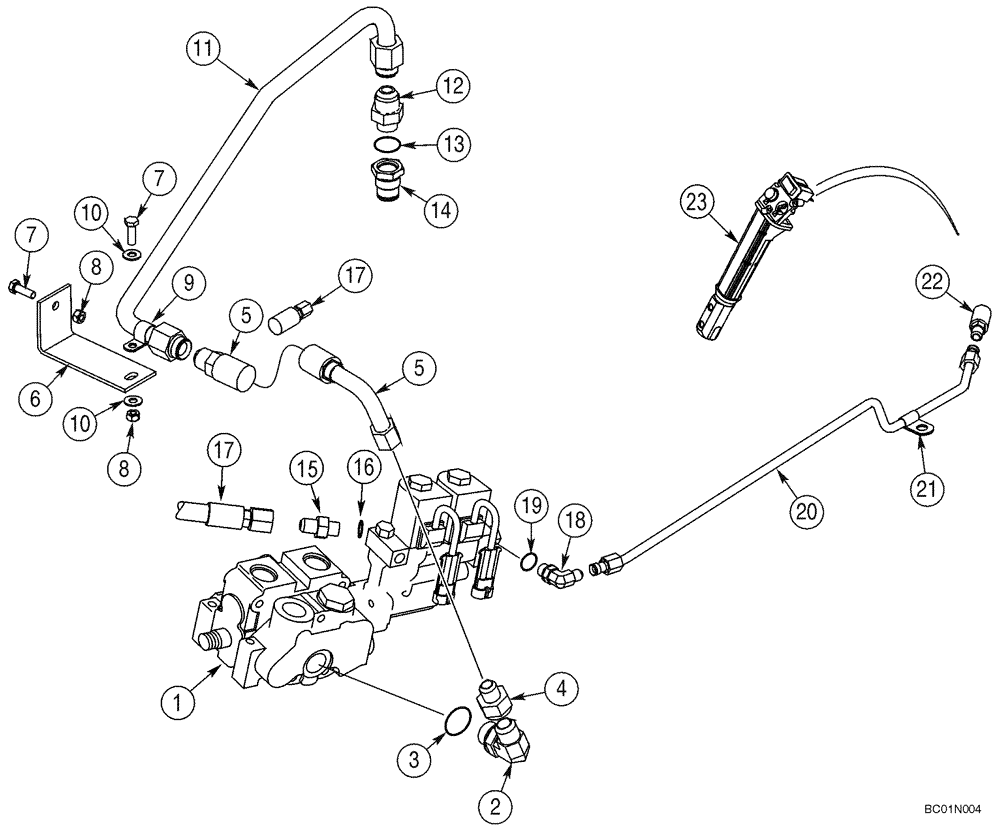

Запчасти Case IH 75XT (08-17) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (Dec 10 2009 2:54PM) (08) - HYDRAULICS

REF

INSTRUCTION

CHARGE PRESSURE AND PILOT RELIEF LINES

1шт.

1

372194A2

VALVE

Control; See Figure 08-20

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

5

430114A1

HOSE ASSY.

355 mm (14 in); Power, Serial Range: Beyond-Valve

1шт.

6

426301A1

BRACKET

1шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

9

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Replaces 515-22190

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

419888A1

TUBE

Power Beyond

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

417368A1

SLEEVE

High Pressure Carry Over

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 16

1шт.

17

416706A1

HOSE ASSY.

433 mm (17 in); Pilot Return; For Attaching Parts; See Figure 08-19, Ref 12

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 19

1шт.

20

426143A1

TUBE

Pilot Pressure High Flow

1шт.

21

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

22

426144A1

HOSE ASSY.

606 mm (23-7/8 in); Pilot Pressure; For Attaching Parts; See Figure 07-01, Ref 6B

1шт.

23

235909A3

HANDLE

Control; Left Hand Brake; See Figure 04-18

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
