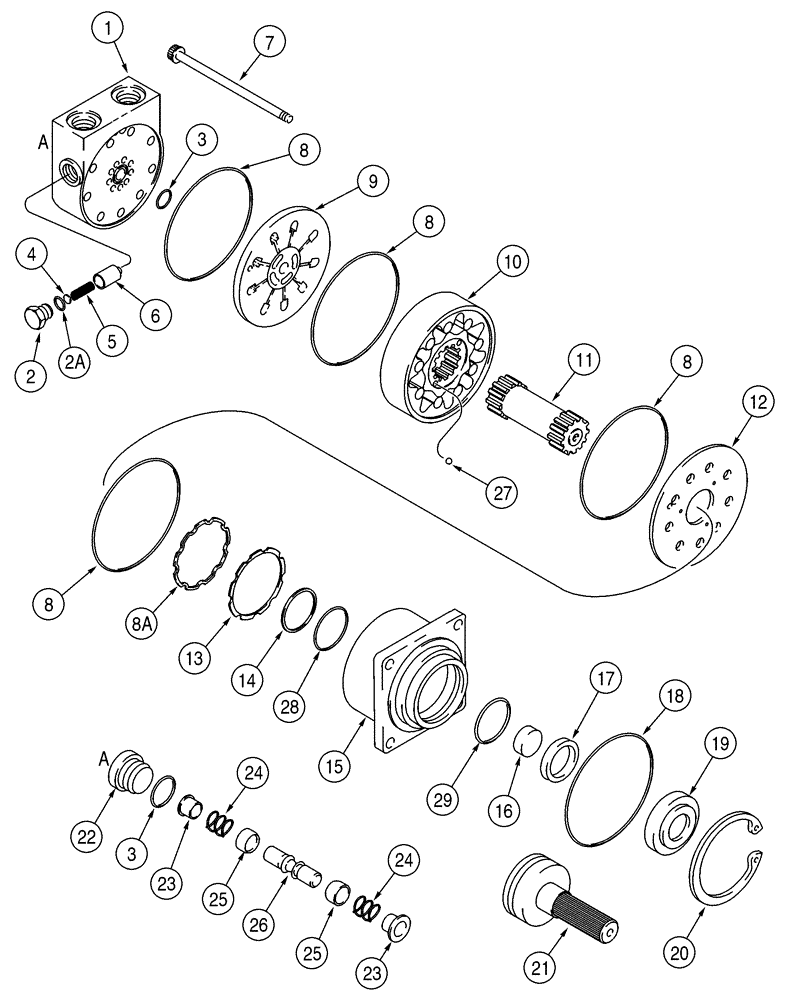

Запчасти Case IH 75XT (06-20) - MOTOR ASSY, JAF0318181 - JAF0318921 (06) - POWER TRAIN

*

Models With Hydraulic Actuated Brake, 401273A1

1шт.

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

371561A1

MOTOR, HYDRAULIC

Includes 1 - 29

2шт.

1

324592A1

CAP

Includes 218-5209 9/16 - 18 Socket Head Plug

1шт.

218-5209

PLUG,Hex, 9/16"-18 ORB

9/16 - 18; Includes 237-6006 O-Ring

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

2

282787A1

PLUG

Includes 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

4

282788A1

SHIM

1шт.

5

324593A1

SPRING

1шт.

6

282790A1

VALVE POPPET

1шт.

7

438421A1

12 PT SCREW

12 pt

9шт.

8

NSS

NOT SOLD SEPARAT

Seal

4шт.

8a

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

324594A1

PLATE

1шт.

10

438418A1

GEAR SET

1шт.

11

86994439

SHAFT

1шт.

12

324597A1

LARGE PLATE

PLATE, LARGE

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Bearing

1шт.

16

NSS

NOT SOLD SEPARAT

Spacer

1шт.

17

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Retainer

1шт.

20

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft

1шт.

22

282804A1

PLUG

1шт.

23

251509A1

RING

2шт.

24

251506A1

SPRING

2шт.

25

251511A1

VALVE POPPET

2шт.

26

365475A1

PISTON ASSY.

1шт.

27

140784A1

BALL

2шт.

28

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

401273A1

BRAKE ASSY.

See Figure 07-04

1шт.

402255A1

SEAL KIT

Seal

1шт.

87048735

KIT

Brake Seal Kit

1шт.

87048736

KIT

Brake Lining Kit

1шт.

87048737

BEARING ASSY

Brake Bearing Kit

1шт.
