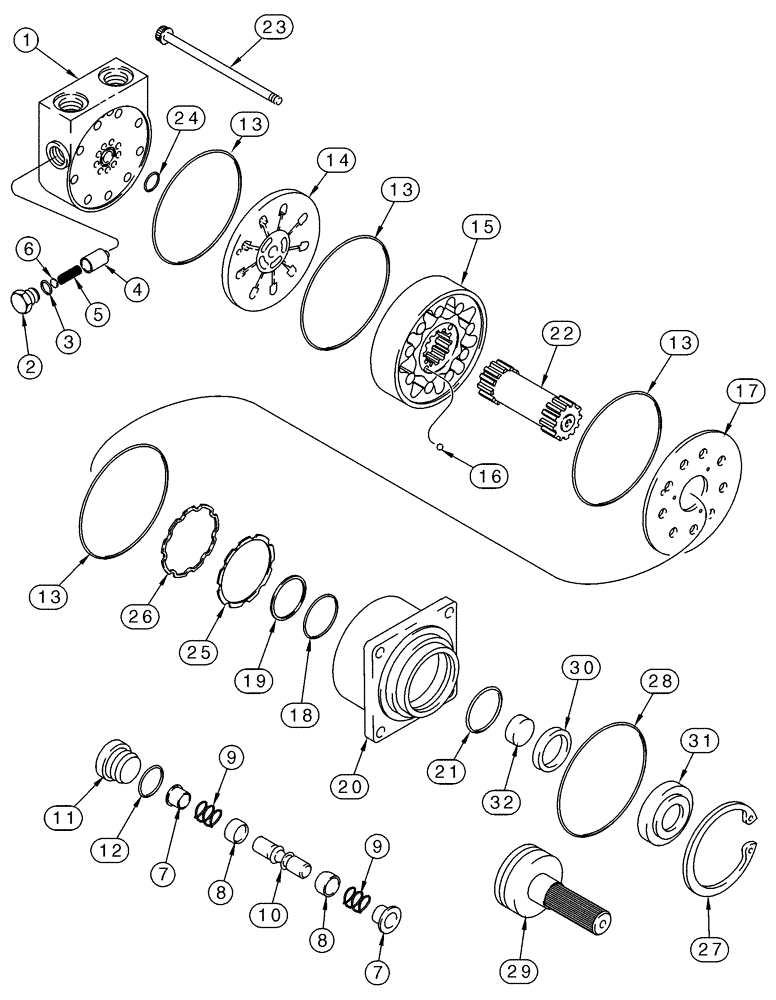

Запчасти Case IH 75XT (06-19) - MOTOR ASSY, BSN JAF0318181 (06) - POWER TRAIN

308606A3

MOTOR, HYDRAULIC

Replaces 308606A2, Consists Of 1 - 32

2шт.

324603A1

SEAL KIT

Consists Of 3, 12, 13, 18, 19, 21, 24, 25, 26, 28, 30

1шт.

218-5209

PLUG,Hex, 9/16"-18 ORB

9/16 - 18; Includes 237-6006 O-Ring

1шт.

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

1

324592A1

CAP

Includes 218-5209 9/16 - 18 Socket Head Plug

1шт.

2

282787A1

PLUG

Includes 3

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, Order 324603A1

1шт.

4

282790A1

VALVE POPPET

1шт.

5

324593A1

SPRING

Relief Valve

1шт.

6

282788A1

SHIM

1шт.

7

251509A1

RING

1шт.

8

251511A1

VALVE POPPET

2шт.

9

251506A1

SPRING

Shuttle Valve

2шт.

10

282802A1

PISTON ASSY.

1шт.

11

282804A1

PLUG

Includes 12

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Order 324603A1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order 324603A1

4шт.

14

324594A1

PLATE

1шт.

15

324595A1

GEAR-SET

1шт.

16

140784A1

BALL

2шт.

17

324597A1

LARGE PLATE

PLATE, LARGE

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Order 324603A1

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Backup, Order 324603A1

1шт.

20

324598A1

BEARING HOUSING

1шт.

21

NSS

NOT SOLD SEPARAT

Seal, Order 324603A1

1шт.

22

324599A1

SHAFT

1шт.

23

324799A1

12 PT SCREW

9шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, Order 324603A1

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Backup, Order 324603A1

1шт.

26

NSS

NOT SOLD SEPARAT

Seal, Order 324603A1

1шт.

27

100-21393

SNAP RING,3.938", Int, #393

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Order 324603A1

1шт.

29

324600A1

SHAFT

28T; Incl. Bearings, Bearing Races, Spacer, And Retaining Ring

1шт.

30

324800A1

SEAL

Shaft; Included in Seal Kit 324603A1

1шт.

31

438423A1

RETAINER

Replaces 324601A1

1шт.

32

324602A1

SPACER

1шт.
