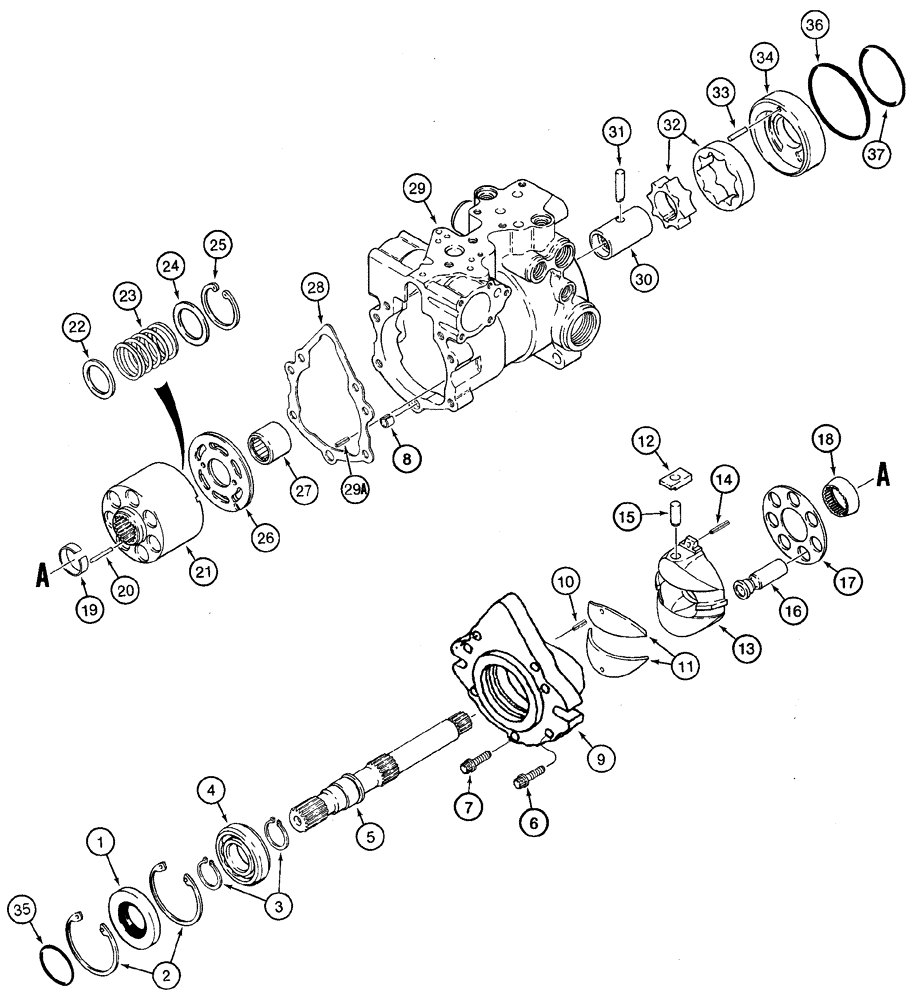

Запчасти Case IH 75XT (06-17) - PUMP, TANDEM (06) - POWER TRAIN

*

Rear Pump

1шт.

198150A5

PUMP, HYDRAULIC

Replaces 198150A4, Consists Of 1- 37, Includes Figure 06-09, 06-10, 06-12 - 06-17, - JAF0317836

1шт.

394132A1

PUMP, HYDRAULIC

Consists Of 1- 37, Includes Figure 06-09, 06-10, 06-12 - 06-17, JAF0317837 -, If Used

1шт.

394132A2

PUMP, HYDRAULIC,46 CC

Consists Of 1- 37, Includes Figure 06-09, 06-10, 06-12 - 06-17, If Used

1шт.

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

N14103

SEAL

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

N13244

SHAFT

1шт.

6

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

7

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

8

N13994

SPACER

1шт.

9

324611A1

COVER

1шт.

10

193494A1

PIN, ROLL

2шт.

11

193488A1

BEARING LINER

2шт.

12

N13224

SLEEVE

1шт.

178632A1

COVER

Consists Of 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Plate

1шт.

14

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

15

N13254

PIN

If Used

1шт.

402366A1

KIT

Cylinder Block, Use With 394132A2, Components Not Serviced Separately

1шт.

115952A2

CYLINDER BLOCK

Consists Of 16 - 25, If Used

1шт.

16

NSS

NOT SOLD SEPARAT

Piston

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

115942A1

GUIDE

1шт.

19

115943A1

SNAP RING

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

21

115944A2

CYLINDER BLOCK

1шт.

22

115946A1

WASHER

1шт.

23

115948A1

SPRING

1шт.

24

115950A1

WASHER

1шт.

25

NSS

NOT SOLD SEPARAT

Ring

1шт.

26

128929A1

LARGE PLATE

PLATE, LARGE

1шт.

27

1277297C1

NEEDLE BEARING

1шт.

28

H436704

GASKET,0.79mm Thk

1шт.

29

303718A1

HOUSING

1шт.

30

N13234

COUPLING, BREAK AWAY

1шт.

31

N13262

PIN

1шт.

32

N13247

GEAR-SET

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

1шт.

36

H437190

O-RING

1шт.

37

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

1шт.
