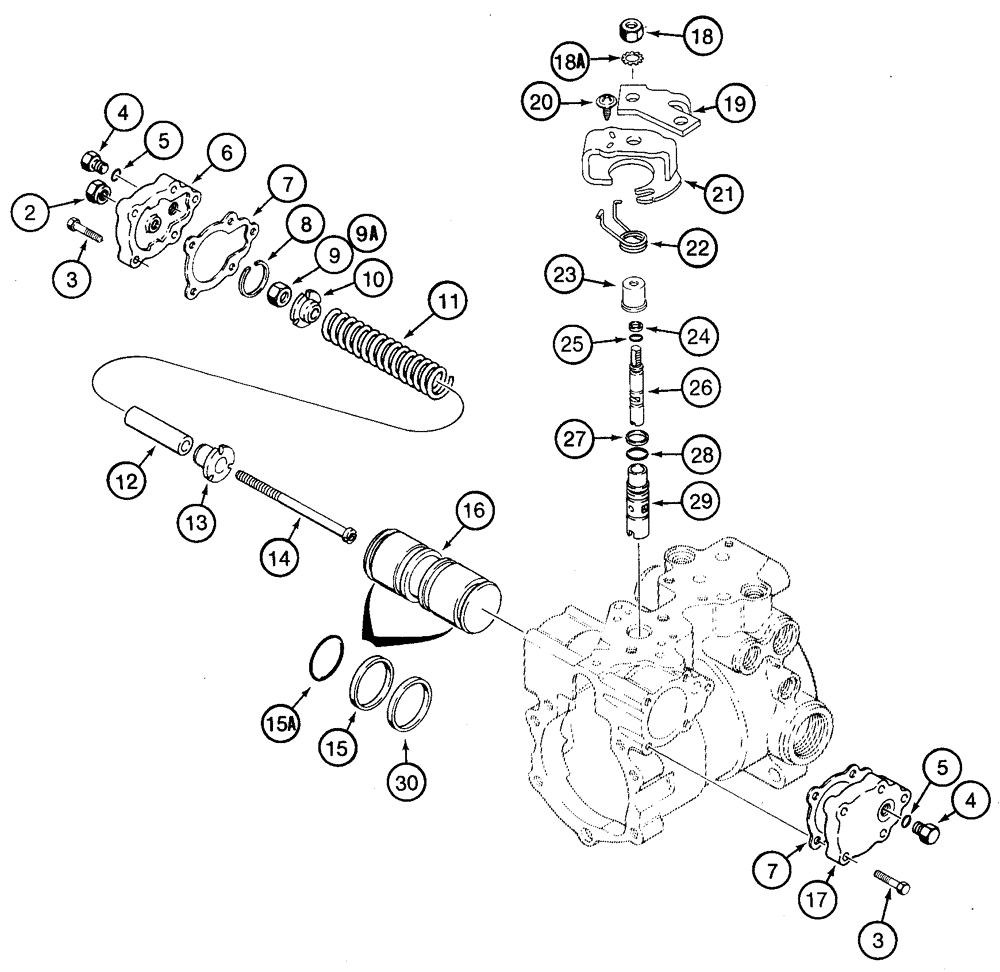

Запчасти Case IH 75XT (06-16) - PUMP, TANDEM (06) - POWER TRAIN

*

Rear Pump

1шт.

198150A5

PUMP, HYDRAULIC

Replaces 198150A4, Consists Of 2 - 30, Includes Figure 06-09, 06-10, 06-12 - 06-17, - JAF0317836

1шт.

394132A1

PUMP, HYDRAULIC

Consists Of 2 - 30, Includes Figure 06-09, 06-10, 06-12 - 06-17, JAF0317837 -, If Used

1шт.

394132A2

PUMP, HYDRAULIC,46 CC

Consists Of 2 - 30, Includes Figure 06-09, 06-10, 06-12 - 06-17, If Used

1шт.

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

2

N13260

NUT,Inverted Lock

5/8 NF

1шт.

3

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 x 1-1/4; 8

10шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. 5

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

H436065

COVER

1шт.

7

N14063

GASKET

2шт.

8

N13255

RING

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

1шт.

9a

324604A1

NUT,Lock

3/8 in

1шт.

10

N13241

GUIDE,1.292" OD

1шт.

11

N13226

SPRING

1шт.

12

N13242

SLEEVE

1шт.

13

N14666

GUIDE,1.292" OD

1шт.

14

370531A1

SCREW

Replaces 244905A1

1шт.

H673773

KIT

Includes 15, 15A

1шт.

15

N14668

RING, PISTON

2шт.

15a

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

16

H435772

PISTON

1шт.

17

H436053

COVER

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

18a

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

19

324608A1

CONTROL LEVER

1шт.

19

407061A1

CONTROL LEVER

Use With 394132A2

1шт.

20

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

21

324609A1

KIT

If Used

1шт.

21

407062A1

SUPPORT

Use With 394132A2, If Used

1шт.

22

324607A1

SPRING

If Used

1шт.

22

407060A1

SPRING

Use With 394132A2, If Used

1шт.

23

324606A1

GUIDE

If Used

1шт.

23

407059A1

GUIDE

Use With 394132A2, If Used

1шт.

24

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

26

361701A1

SPOOL

Replaces 324605A1

1шт.

27

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

1шт.

28

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

29

110671A2

SLEEVE

1шт.

30

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

1шт.
