Запчасти Case IH 75XT (06-14) - PUMP, TANDEM (06) - POWER TRAIN

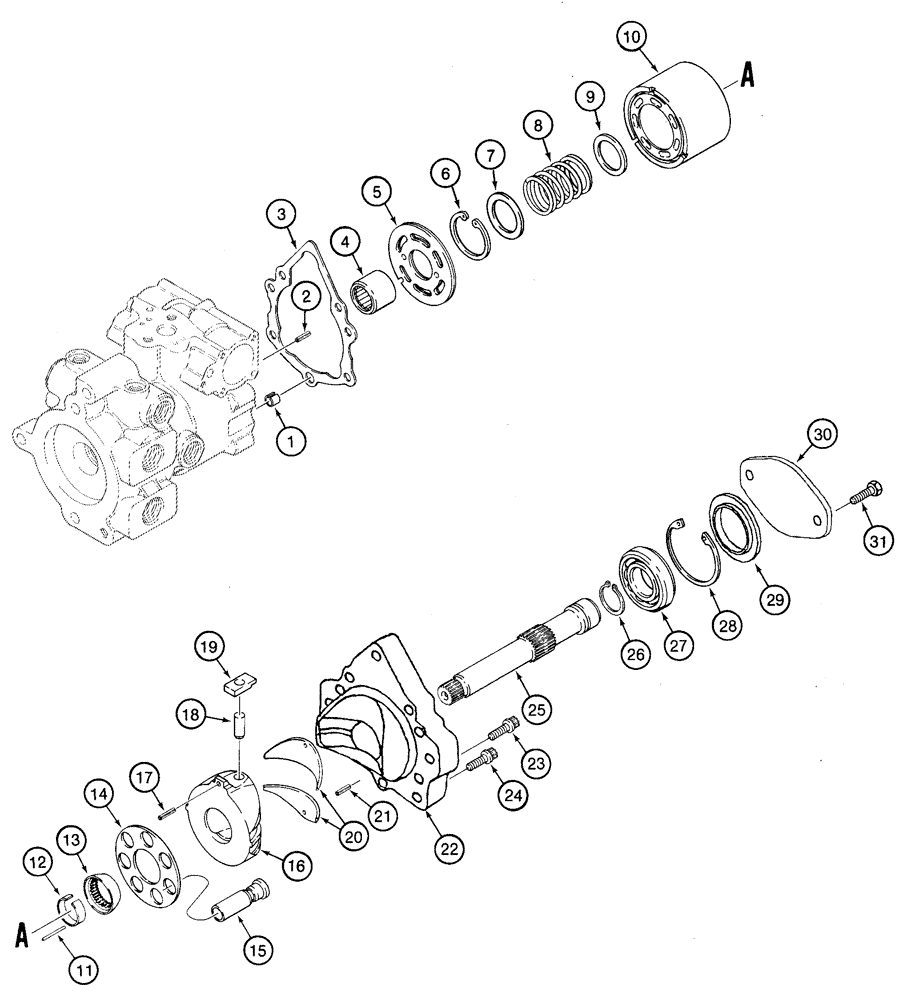

Схема запчастей Case IH 75XT - (06-14) - PUMP, TANDEM (06) - POWER TRAIN
9
4
10
7
12
3
30
26
19
13
29
14
21
24
27
1
22
5
20
8
25
18
31
2
17
6
16
23
28
15
11

Артикул

Название

Примечание

Количество

*

Front Pump

1шт.

198150A5

PUMP, HYDRAULIC

Replaces 198150A4, Consists Of 1 - 31, Includes Figure 06-09, 06-10, 06-12 - 06-17,- JAF0317836

1шт.

394132A1

PUMP, HYDRAULIC

Consists Of 1 - 31, Includes Figure 06-09, 06-10, 06-12 - 06-17, JAF0317837 -, If Used

1шт.

394132A2

PUMP, HYDRAULIC,46 CC

Consists Of 1 - 31, Includes Figure 06-09, 06-10, 06-12 - 06-17, If Used

1шт.

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

N13994

SPACER

1шт.

2

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

3

H436704

GASKET,0.79mm Thk

1шт.

4

1277297C1

NEEDLE BEARING

1шт.

5

128929A1

LARGE PLATE

PLATE, LARGE

1шт.

402366A1

KIT

Cylinder Block, Use With 394132A2, Components Not Serviced Separately

1шт.

115952A2

CYLINDER BLOCK

Consists Of 6 - 15, If Used

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

7

115950A1

WASHER

1шт.

8

115948A1

SPRING

1шт.

9

115946A1

WASHER

1шт.

10

115944A2

CYLINDER BLOCK

1шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

12

115943A1

SNAP RING

1шт.

13

115942A1

GUIDE

1шт.

14

NSS

NOT SOLD SEPARAT

Retainer

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

1шт.

178632A1

COVER

Consists Of 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Plate

1шт.

17

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

18

N13254

PIN

If Used

1шт.

19

N13224

SLEEVE

1шт.

20

193488A1

BEARING LINER

2шт.

21

193494A1

PIN, ROLL

2шт.

22

H436705

COVER

1шт.

23

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

24

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

25

N13222

SHAFT

1шт.

26

100-11137

SNAP RING,#137, Ext

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

29

251661A1

SEAL

1шт.

30

H438063

LARGE PLATE

PLATE, LARGE

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

Выбрано товаров: 40
