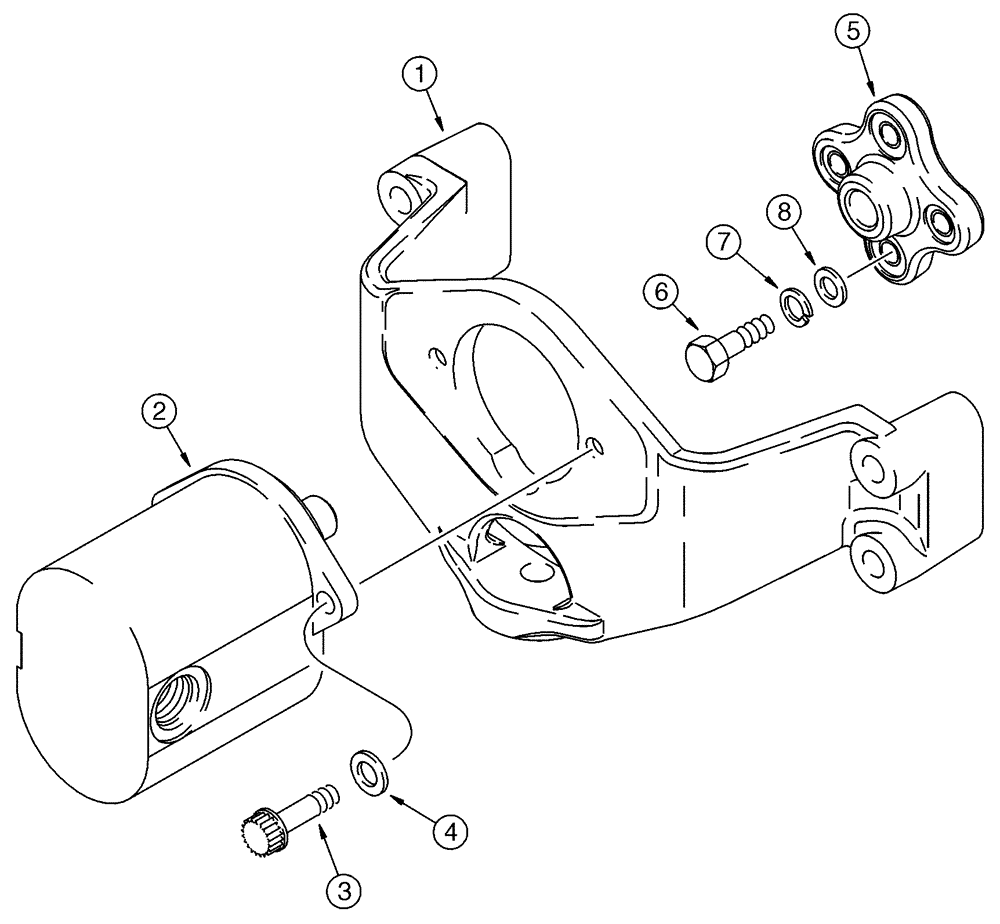

Запчасти Case IH 75XT (06-11) - PUMP, GEAR - MOUNTING (06) - POWER TRAIN

1

247421A1

SUPPORT

Engine Mounting, Pump, N.A. Only, See Figure 02-08

1шт.

1

255473A1

HOLDER

Engine Mounting, Pump, Europe Only, No Longer Used, Order 247421A1, See Figure 02-08

1шт.

2

298851A2

PUMP

See Figure 06-18

1шт.

84561841R

75XT, Reman for new PN 298851A2

REMAN-HYD PUMP

1шт.

84561841C

Return Number

CORE-HYDRAULIC PUMP

1шт.

3

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

2шт.

5

131693A1

FLEXIBLE COUPLING,13T

1шт.

6

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

4шт.

7

492-11044

LOCK WASHER,7/16"

4шт.

8

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
