Запчасти Case IH 75XT (06-10) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN

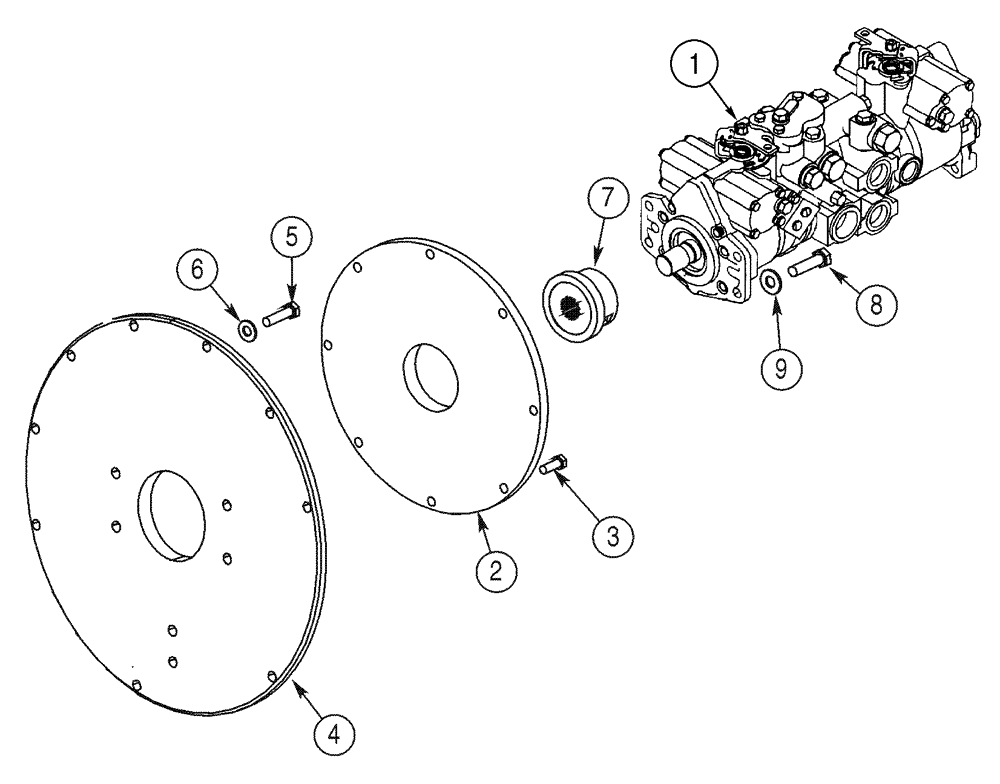

Схема запчастей Case IH 75XT - (06-10) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN
3
8
1
2
4
7
5
9
6

Артикул

Название

Примечание

Количество

*

North American Models JAF0318922-

1шт.

*

European Models JAF0352169-

1шт.

1

394132A2

PUMP, HYDRAULIC,46 CC

Consists Of 2 - 9, Also Includes Parts On Figure 06-12 - 06-17

1шт.

1

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

1

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

2

357801A1

FLANGE

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

4

434636A1

PLATE

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

9шт.

7

341008A1

COUPLING

19T

1шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

Выбрано товаров: 14
