Запчасти Case IH 75XT (06-09) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN

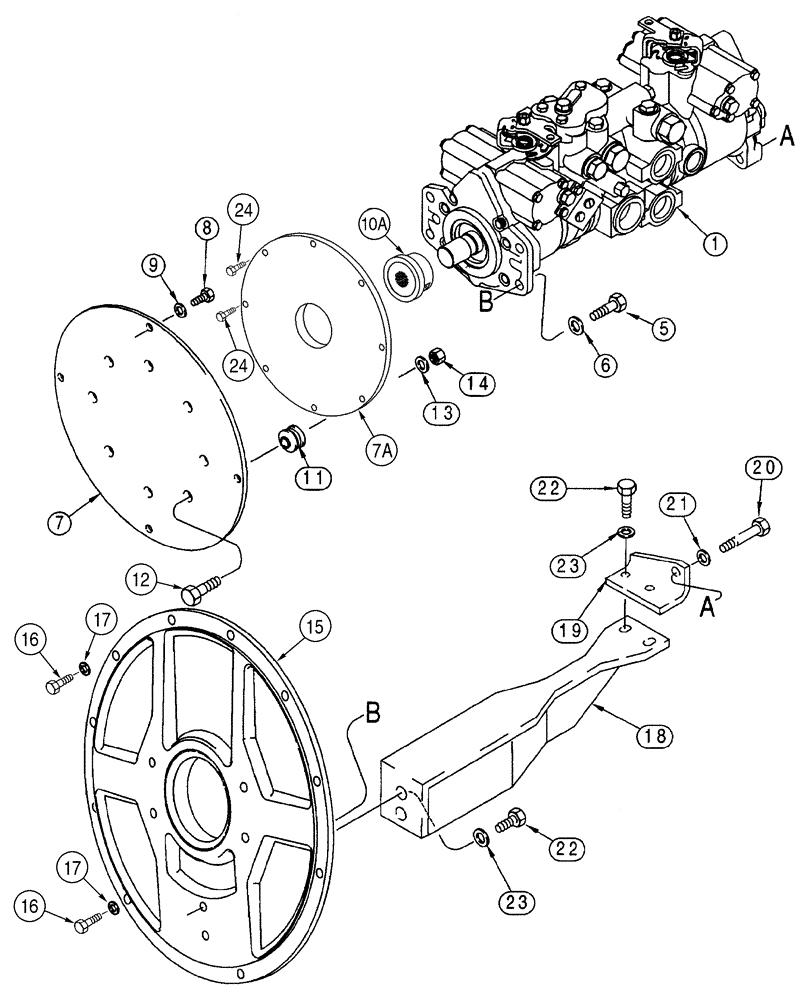

Схема запчастей Case IH 75XT - (06-09) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN
6
23
20
24
22
17
9
10a
19
12
18
13
7a
11
8
17
15
23
7
16
16
22
5
21
14
1
24

Артикул

Название

Примечание

Количество

*

North American Models -JAF0318921

1шт.

*

European Models -JAF0352168

1шт.

1

198150A5

PUMP, HYDRAULIC

Replaces 198150A4, Consists Of 5 - 23, Also Includes Figure 06-12 - 06-17, - JAF0317836

1шт.

1

394132A1

PUMP, HYDRAULIC

Consists Of 5 - 23, Also Includes Parts On Figure 06-12 - 06-17, JAF0317837 -, If Used

1шт.

1

394132A2

PUMP, HYDRAULIC,46 CC

Consists Of 5 - 23, Also Includes Figure 06-10, 06-12 - 06-17, If Used

1шт.

1

87298030

REMAN-HYD PUMP

Remanufactured HYD PUMP

1шт.

1

87298031

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

5

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

H438922

LARGE PLATE

PLATE, LARGE Use With Engine 326956A1

1шт.

7a

357801A1

FLANGE

Use With Engine 379986A1

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

Use With Engine 326956A1, Not Illustrated, Drive Coupler

1шт.

10a

341008A1

COUPLING

19T, Use With Engine 379986A1

1шт.

11

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

8шт.

12

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

14

232-4117

LOCK NUT,7/16"-14, GC

8шт.

15

392270A2

PLATE

Replaces 310988A1/(New Part will not come with Vertical Holes, Not Necessary)

1шт.

15a

275087A3

SUPPORT

Europe Only, No Longer Used, Order 392270A2, REF 15, Not Illustrated

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

6шт.

18

140801A1

SUPPORT

1шт.

19

247072A1

ANGLE

1шт.

20

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

22

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

Выбрано товаров: 31
