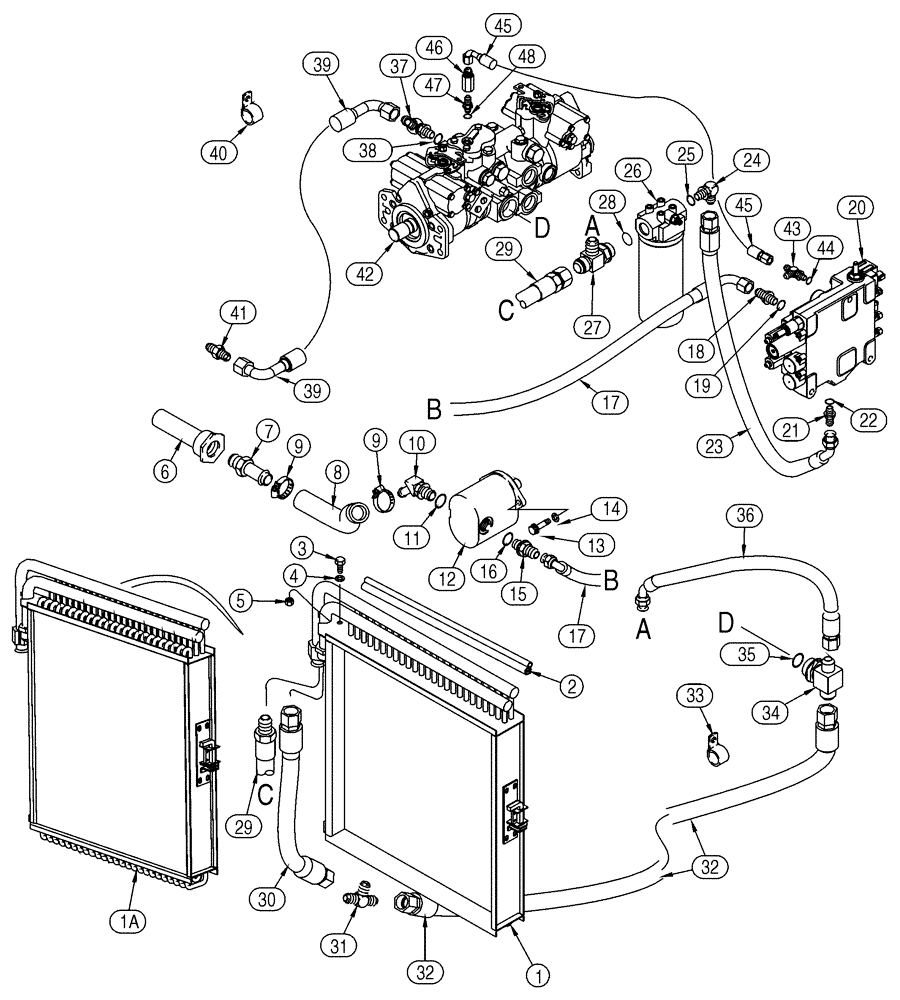

Запчасти Case IH 75XT (06-01) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
*
North American Models - JAF0318921
1шт.
*
European Models - JAF0352168
1шт.
1
238693A1
COOLER, OIL
Without Turbulators, Behr# BM20565 And Core Length Of 20-1/4"
1шт.
1a
237994A2
COOLER, OIL
Models With High Flow Gear, See Figure 08-26, 08-37; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"
1шт.
2
230745A1
RUBBER SEAL,512mm L
512 mm
8шт.
3
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
2шт.
5
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
6
189310A1
STRAINER ASSY.
1шт.
7
217-157
FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF
1-1/4 stem x PT
1шт.
8
281855A3
HOSE,375.00 mm
350 mm (13-3/4 in), Replaces 281855A2
1шт.
9
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
Replaces 214-3132
2шт.
10
217-184
FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB
Includes 11, Replaces 217-320
1шт.
12
298851A2
PUMP
See Figure 06-18
1шт.
12
84561841R
75XT, Reman for new PN 298851A2
REMAN-HYD PUMP
1шт.
12
84561841C
Return Number
CORE-HYDRAULIC PUMP
1шт.
13
868-10030
12 PT SCREW,M10 x 30mm, Cl 12.9
2шт.
15
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 16
1шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
17
244844A3
HOSE ASSY.,19.05mm ID x 1037.7mm L
1038 mm (40-7/8 in)
1шт.
18
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Includes 19
1шт.
19
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
20
251831A5
VALVE
3 spool, Replaces 251831A4, See Figure 08-13, 08-16, For Mounting, See Figure 08-13
1шт.
21
218-5046
HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB
1-5/16 fl x 7/8 Or, Includes 22
1шт.
22
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
23
244850A2
HOSE ASSY.
950 mm (37-3/8 in)
1шт.
24
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 25
1шт.
26
222756A2
FILTER ASSY
Return, See Figure 06-07
1шт.
27
254524A1
TEE
Includes 28
1шт.
29
244851A2
HOSE ASSY.
1325 mm (52-3/16 in)
1шт.
30
244848A2
HOSE ASSY.
570 mm (22-7/16 in)
1шт.
31
218-558
TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br
1шт.
32
244849A2
HOSE ASSY.
1400 mm (55-1/8 in)
1шт.
33
515-23365
CLAMP,1 7/16", Insul, 3/8" Bolt
1шт.
34
227598A1
TEE
Special, Includes 35
1шт.
35
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1шт.
36
292685A1
HOSE ASSY.
636 mm (25 in)
1шт.
37
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1-1/16 fl x fl x Or, Includes 38
1шт.
38
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
39
313618A2
HOSE ASSY.
1275 mm (50-3/16 in)
1шт.
40
515-23286
CLAMP,1-1/8", Insul, 3/8" Bolt
1шт.
41
218-1027
HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF
1-1/16 fl x 1 PT
1шт.
42
394132A1
PUMP, HYDRAULIC
Replaces 198150A4, 198150A5, See Figure 06-12 - 06-17, If Used
1шт.
42
394132A2
PUMP, HYDRAULIC,46 CC
See Figure 06-12 - 06-17, If Used
1шт.
42
87298030
REMAN-HYD PUMP
Remanufactured HYD PUMP
1шт.
42
87298031
CORE-HYDRAULIC PUMP
Return No, HYDRAULIC PUMP
1шт.
43
218-5243
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Includes 44
1шт.
45
312561A1
HOSE ASSY.
285 mm (11-1/4 in)
1шт.
46
311332A1
FITTING
1шт.
47
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 48
1шт.
395211A1
KIT
Neutral Override, Consists Of 49 - 55, - JAF0317836, Not Illustrated
1шт.
49
393908A1
HOSE
Rear
1шт.
50
393909A1
HOSE
Front
1шт.
51
H331884
ELBOW
90 deg
2шт.
52
218-5222
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
1шт.
53
218-836
TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br
9/16 x 18
1шт.
54
392597A1
BRACKET
1шт.
55
217-427
PLUG,Hex Soc, 1/16" - 27 NPTF
2шт.
4
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
14
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
44
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
48
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 64
