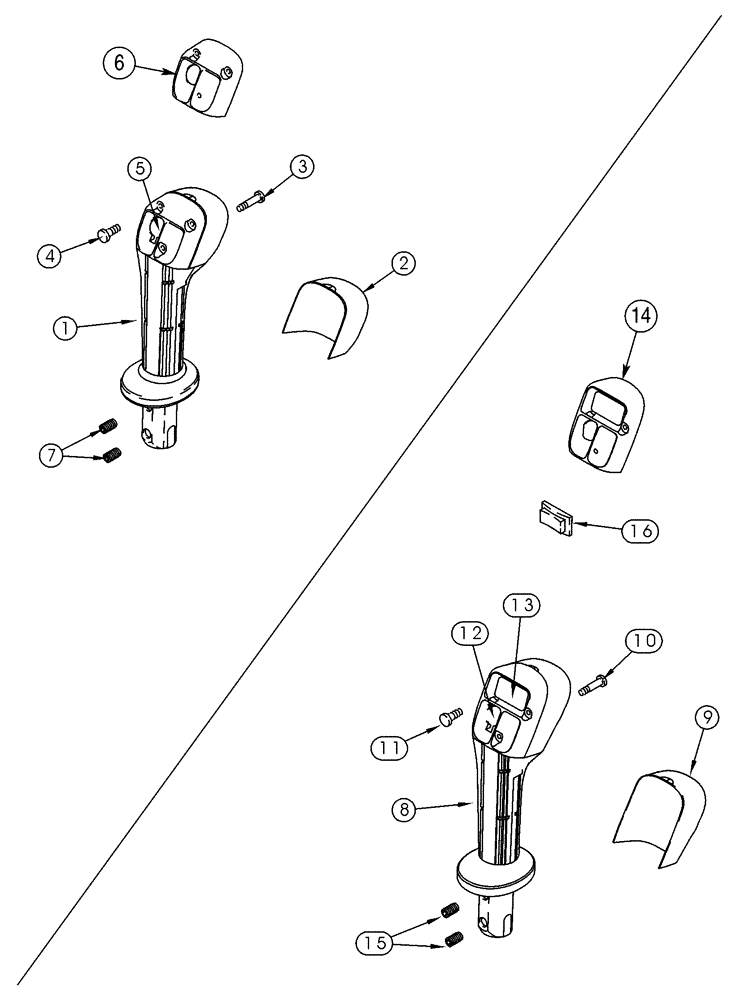

Запчасти Case IH 75XT (04-24) - CONTROLS, LEFT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

Single Switch

1шт.

235765A2

HANDLE

Left Hand, Single Switch, Consists Of 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

2

291792A1

CAP

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

5

303892A1

SWITCH

Brake

1шт.

6

291795A2

PLASTIC PLATE

1шт.

7

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

Two Switch

1шт.

235909A3

HANDLE

Left Hand, Two Switch, Consists Of 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

9

291793A1

CAP

1шт.

10

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

11

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

12

303892A1

SWITCH

Brake

1шт.

13

291804A1

SWITCH

High Flow

1шт.

14

291798A2

PLASTIC PLATE

1шт.

15

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

16

303893A1

BOOT

Rocker Switch

1шт.

Note: For old handles with the button on the top of the handle: Brake switch part number is 256702A3 and the horn switch part number is 256701A2.

1шт.
