Запчасти Case IH 75XT (04-22) - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

398129A1

KIT

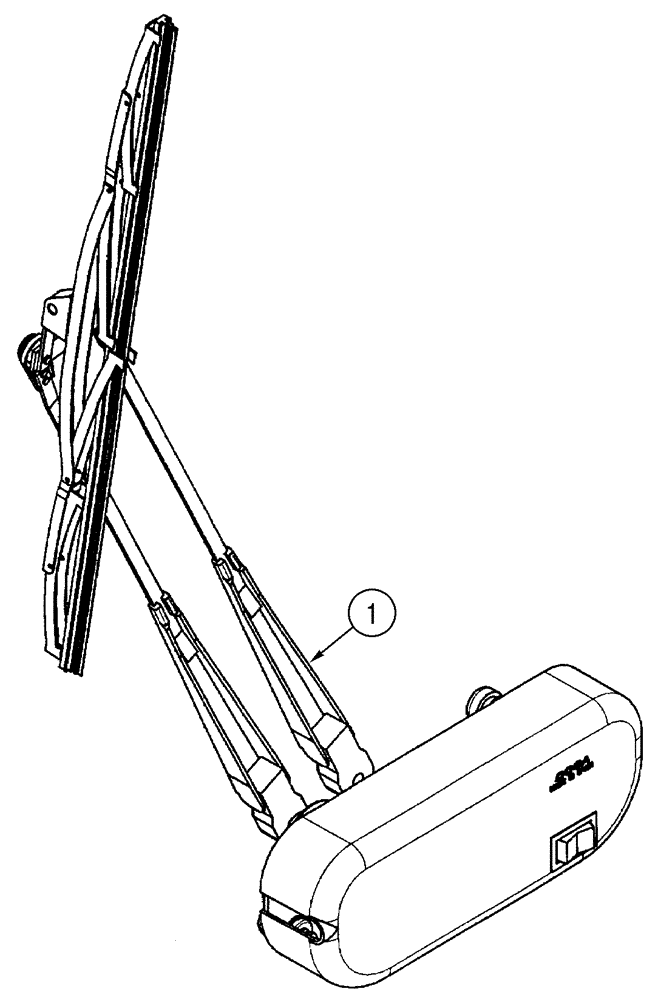

Windshield Wiper Front, See Figure 09-43, Includes 2 - 10, Components Not Illustrated

1шт.

2

442669A1

WIPER MOTOR

MOTOR, WIPER 12V, Includes 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Harness

1шт.

5

NSS

NOT SOLD SEPARAT

Connector

1шт.

6

NSS

NOT SOLD SEPARAT

Switch

1шт.

7

442670A1

WIPER ARM

ARM, WIPER 450 mm (17-3/4 in); Spray Nozzle Is Not Serviced Separately, Must Order Arm Assy

1шт.

8

442671A1

WIPER BLADE

BLADE, WIPER 500 mm (19-11/16 in)

1шт.

9

442673A1

HOSE,915.00 mm

1шт.

10

442672A1

GROMMET

9 mm ID

2шт.
