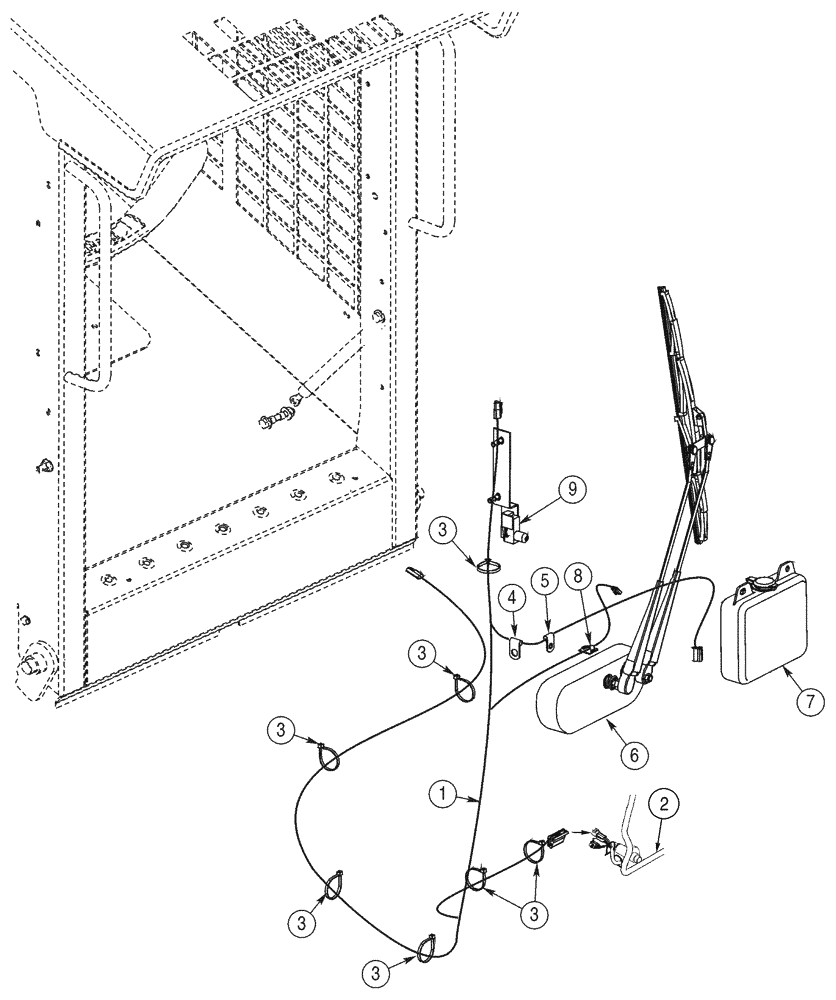

Запчасти Case IH 75XT (04-19) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

417593A1

HARNESS

Front Door, Models With Glass Front Door, See Figure 09-43

1шт.

2

227762A5

HARNESS

Cab, See Figure 04-15

1шт.

256340A1

CONNECTOR, ELEC

CONNECTOR 2-Prong Headlight Connector = (1) Of P/N 256340A1 & (2) Of Terminal P/N 258613A1

1шт.

258613A1

LOCK

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

7шт.

4

515-2579

CLAMP,5/16", Insul, 1/8" Bolt

7,9 mm

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

6

398129A1

KIT

Wiper, See Figure 04-22

1шт.

7

322651A1

RESERVOIR ASSY.

Components Not Serviced Separately

1шт.

8

H439303

CLIP

2шт.

9

392269A2

SWITCH

Seat

1шт.
