Запчасти Case IH 75XT (04-16) - HARNESS - CAB (04) - ELECTRICAL SYSTEMS

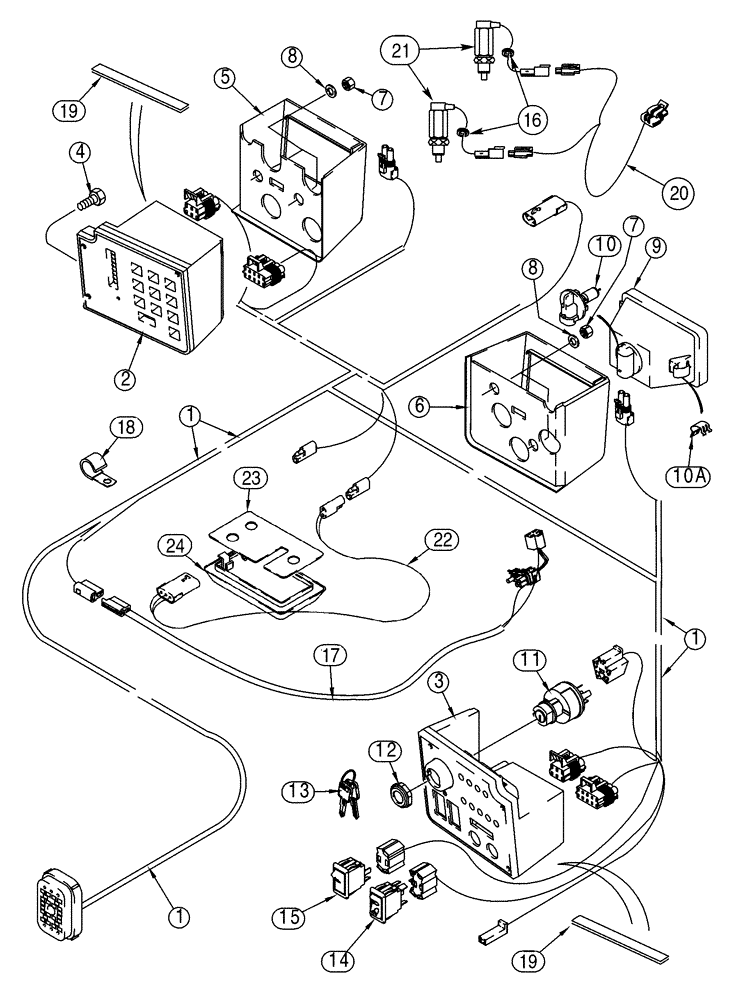

Схема запчастей Case IH 75XT - (04-16) - HARNESS - CAB (04) - ELECTRICAL SYSTEMS
20
16
24
22
11
7
12
1
10
10a
23
7
5
2
3
4
15
14
19
17
1
8
18
21
13
8
6
1
9
19

Артикул

Название

Примечание

Количество

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

227762A5

HARNESS

Cab

1шт.

256340A1

CONNECTOR, ELEC

CONNECTOR 2-Prong Headlight Connector = (1) Of P/N 256340A1 & (2) Of Terminal P/N 258613A1

1шт.

258613A1

LOCK

2шт.

2

189491A9

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand

1шт.

3

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand

1шт.

3

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Deluxe, Right Hand, Models With Automatic Engine Shutdown, See Figure 04-32

1шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

7шт.

5

199701A1

SUPPORT

Left Hand

1шт.

6

199702A1

SUPPORT

Right Hand

1шт.

7

832-41306

NUT,M6 x 1, Cl 10

4шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

9

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes 10, 10A

2шт.

10

259702A1

BULB

1шт.

10a

259701A1

CLIP,ELECTRICAL

1шт.

282775A1

IGNITION SWITCH

Consists Of 11, 12, 13

1шт.

11

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

12

A77314

NUT

1шт.

13

1964831C2

IGNITION KEY

Padded

1шт.

14

223836A1

LIGHT SWITCH

Lamp

1шт.

15

223838A1

CONTROL

Cold Start

1шт.

16

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

3шт.

17

NSS

NOT SOLD SEPARAT

Harness, Wiper Motor, See Figure 04-22, If Equipped

1шт.

18

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

19

295026A1

SEAL

305 mm (12 in)

2шт.

20

321390A1

HARNESS

Interlock, Switch

1шт.

21

313329A1

SWITCH

Seat Bar, Interlock

2шт.

22

324882A1

HARNESS

Lamp, Models with Deluxe Heater

1шт.

23

322783A1

HOLDER

Models with Deluxe Heater

1шт.

24

325271A1

COURTESY LIGHT

DOME LIGHT Models with Deluxe Heater

1шт.

Выбрано товаров: 31
