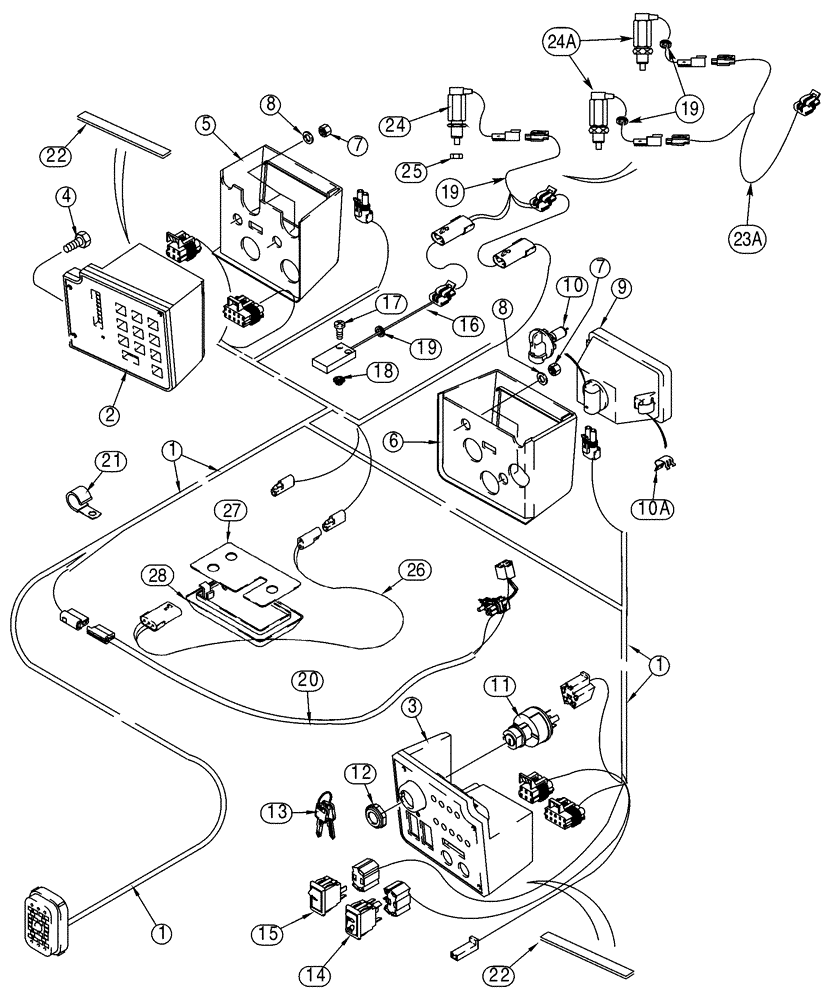

Запчасти Case IH 75XT (04-15) - HARNESS - CAB (04) - ELECTRICAL SYSTEMS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

227762A4

HARNESS

Cab, Replaces 227762A3

1шт.

2

189491A9

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand

1шт.

3

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand, Replaces 189492A2

1шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

7шт.

5

199701A1

SUPPORT

Left Hand

1шт.

6

199702A1

SUPPORT

Right Hand

1шт.

7

832-41306

NUT,M6 x 1, Cl 10

4шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

9

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes 10, 10A

2шт.

10

259702A1

BULB

1шт.

10a

259701A1

CLIP,ELECTRICAL

1шт.

282775A1

IGNITION SWITCH

Consists Of 11, 12, 13

1шт.

11

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

12

A77314

NUT

1шт.

13

1964831C2

IGNITION KEY

Padded

1шт.

14

223836A1

LIGHT SWITCH

Lamp, If Equipped

1шт.

15

223838A1

CONTROL

Cold Start

1шт.

16

198310A1

SWITCH

Seat Bar, - JAF0255315

1шт.

17

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

- JAF0255315

2шт.

18

193-1003

NUT,Keps, w/LW,#6-32

- JAF0255315

2шт.

19

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

3шт.

20

255732A1

HARNESS

Wiper Motor, See Figure 04-21, If Equipped

1шт.

21

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

22

295026A1

SEAL

305 mm (12 in)

2шт.

23

301405A1

CONNECTOR, ELEC

CONNECTOR Interlock, - JAF0255315

1шт.

23a

321390A1

HARNESS

JAF0255316 -, Interlock, Switch

1шт.

24

280925A1

SWITCH

Interlock, Also Order 832-10416, - JAF0255315

1шт.

24a

313329A1

SWITCH

Seat Bar, Interlock, JAF0255316 -

2шт.

25

832-10416

NUT,M16 x 2, Cl 8

Used with 280925A1

1шт.

26

324882A1

HARNESS

Lamp, Models with Deluxe Heater

1шт.

27

322783A1

HOLDER

Models with Deluxe Heater

1шт.

28

325271A1

COURTESY LIGHT

DOME LIGHT Models with Deluxe Heater

1шт.
