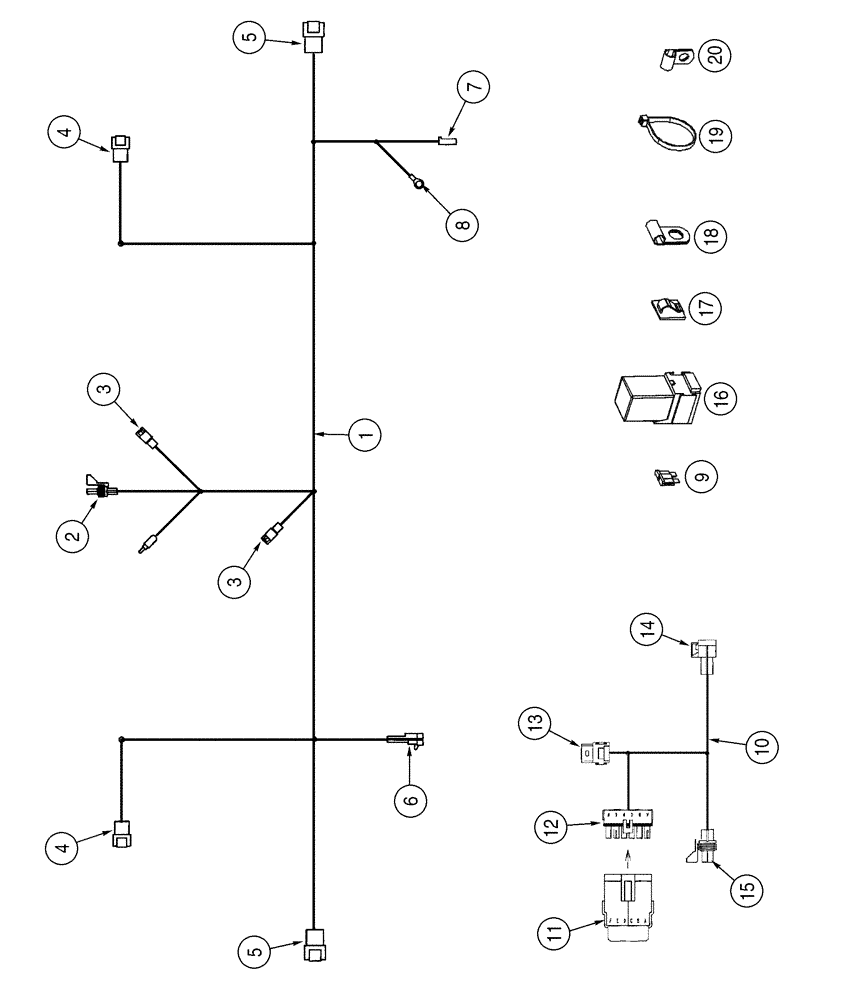

Запчасти Case IH 75XT (04-13) - HARNESS - TURN SIGNAL, FLASHER AND LICENSE PLATE LAMP (04) - ELECTRICAL SYSTEMS

1

326496A3

HARNESS

Turn Signal

1шт.

2

256344A1

CONNECTOR, ELEC

CONNECTOR Chassis Options

1шт.

3

739070C1

CONNECTOR, ELEC

CONNECTOR

2шт.

4

225326C1

ELEC CONNECTOR,Male, 4 Pin

4 cavity, Turn Signal, Rear, See Figure 04-30

2шт.

5

277905A1

ELEC CONNECTOR,Male, 4 Pin

Turn Signal, Front, See Figure 04-29

2шт.

6

245482C1

ELEC CONNECTOR,2 Pin

License Plate Light, See Figure 04-27

1шт.

7

631801C1

CONNECTION

Horn

1шт.

8

200329

TERMINAL

CONNECTOR 1/4, Horn

1шт.

9

A149800

FUSE,10 Amp

10 amp

1шт.

10

377811A1

HARNESS

Flasher, Includes 11 - 15

1шт.

11

131737A1

DIODE

1шт.

12

245488C1

ELEC CONNECTOR,6 Pin

1шт.

13

245731C1

CONNECTOR, ELEC

CONNECTOR

1шт.

14

256351A1

CONNECTOR, ELEC

CONNECTOR

1шт.

15

256350A1

CONNECTOR, ELEC

CONNECTOR

1шт.

16

379112A1

FLASHER UNIT

Turn Signal and Flasher

1шт.

17

H439303

CLIP

8шт.

18

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

3шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

21

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Not Illustrated

2шт.

22

825-5146

SERRATED NUT,M6, Flg Ser

Not Illustrated

4шт.
