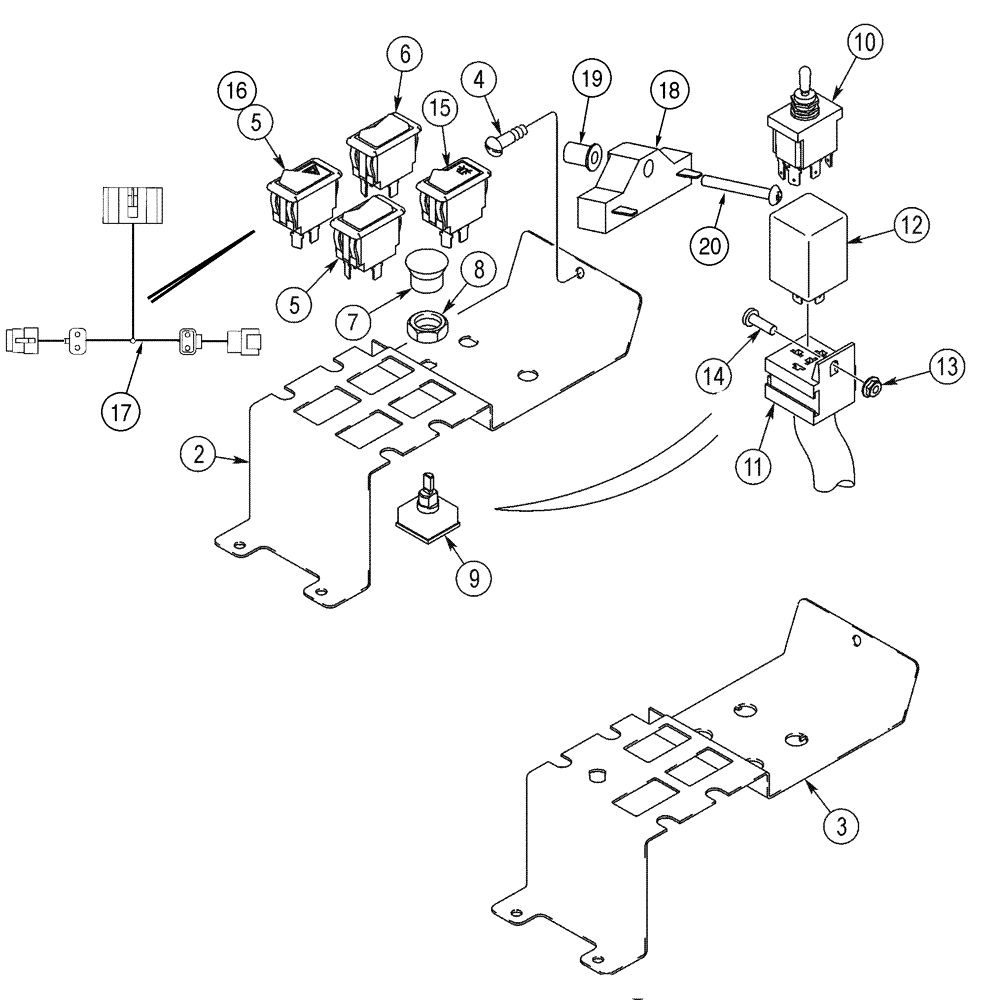

Запчасти Case IH 75XT (04-12) - SWITCH MOUNTING - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Harness, Chassis Options, Not Illustrated, See Figure 04-11

1шт.

2

234311A2

PLATE ASSY.

Switch Mounting, Standard, If Equipped

1шт.

3

294081A1

PLATE

Switch Mounting, Models with Deluxe Heater, If Equipped

1шт.

4

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

5

223837A1

SWITCH

Auxiliary Power, If Equipped

2шт.

6

133714A1

BEACON SWITCH

Beacon Light, If Equipped

1шт.

7

315068A1

BALL KNOB

Blower Switch, If Equipped

1шт.

8

109311H

JAM NUT

7/16 NF, If Equipped

1шт.

9

168822C2

SWITCH

Blower, If Equipped

1шт.

10

400137A1

SWITCH

Models With Hydraulic Coupler

1шт.

11

400081A2

HARNESS

Hydraulic Coupler Switch, Replaces 400081A1

1шт.

12

381990A2

RELAY

Use With 400180A1, Ref 1, See Figure 04-11

1шт.

13

825-5145

NUT,M5, Flg Ser

1шт.

14

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

15

122736A1

FLASHER SWITCH

Flasher

1шт.

16

373331A1

TOGGLE SWITCH

Loader Lock, Europe Only

1шт.

17

373296A1

HARNESS

Loader Lock, Europe Only

1шт.

18

107558C1

RESISTOR

25 ohm

1шт.

19

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

20

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.
