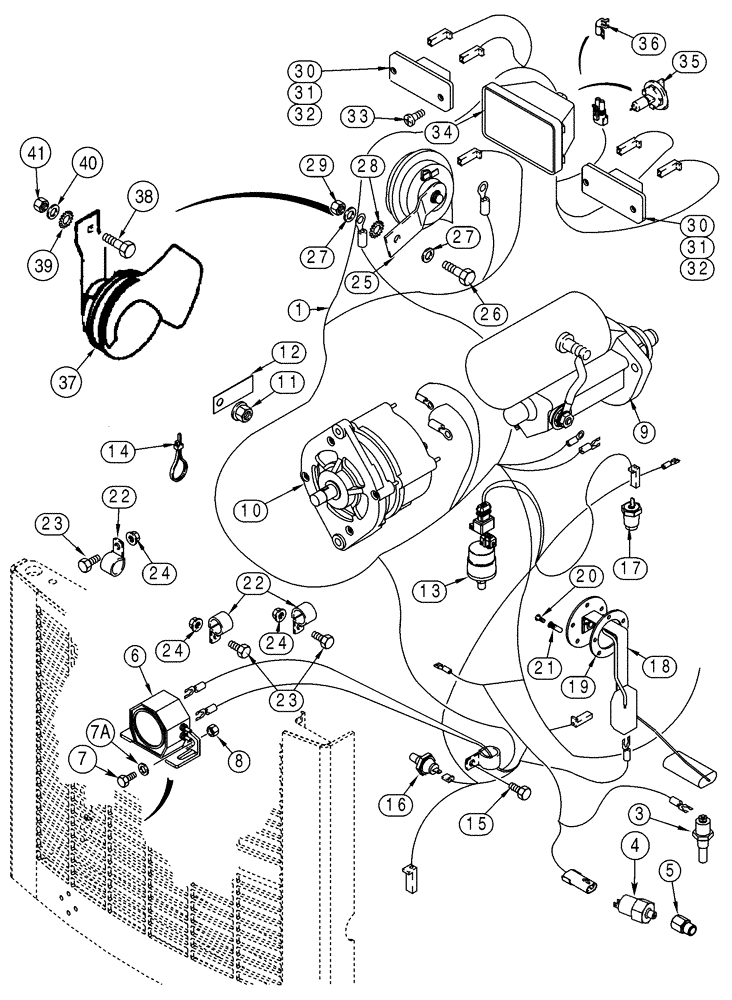

Запчасти Case IH 75XT (04-10) - HARNESS, REAR - CHASSIS (04) - ELECTRICAL SYSTEMS

*

North American Models JAF0318922-

1шт.

*

European Models JAF0352169-

1шт.

1

419623A2

Chassis

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

Not Illustrated, See Figure 04-07

1шт.

3

H439301

SWITCH

Hydraulic Temperature

1шт.

4

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.

5

D137424

FITTING

9/16 NF Or x 1/8

1шт.

6

324299A1

ALARM

Back-up, Production Only, For Service Order 325258A1

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

7a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

1987559C1

STARTING MOTOR

See Figure 04-01

1шт.

9

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt 2.5KW

1шт.

9

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

9

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

9

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

10

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Figure 04-02

1шт.

10

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

12

A37179

CLIP

1шт.

13

293797A1

RESTRICTION SWITCH

Air

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

277016A1

PRESSURE SWITCH

Engine Oil, M10

1шт.

17

1345488C2

PRESSURE SWITCH

Engine Temp

1шт.

18

426128A1

SENDER UNIT

SENDER Fuel Level

1шт.

19

528359R4

GASKET,3.05mm Thk

1шт.

20

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

21

196985A1

ROD,THREADED

THREADED ROD Used With 490-11012, Use Loctite No. 243

5шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

341825A1

HORN

12V, Replaces 190155A1, N.A. Only, See Figure 04-26

1шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

30

233163A2

LAMP, TAIL

LIGHT, TAIL Includes 31 - 33

2шт.

31

NSS

NOT SOLD SEPARAT

Lens, Red

1шт.

32

259499A1

BULB

12V, 5W

1шт.

33

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

No. 8 st x 7/8

2шт.

34

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes 35, 36

1шт.

35

259702A1

BULB

1шт.

36

259701A1

CLIP,ELECTRICAL

1шт.

*

Europe Only

1шт.

37

341825A1

HORN

12V, See Figure 04-26

1шт.

38

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

39

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

40

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.
