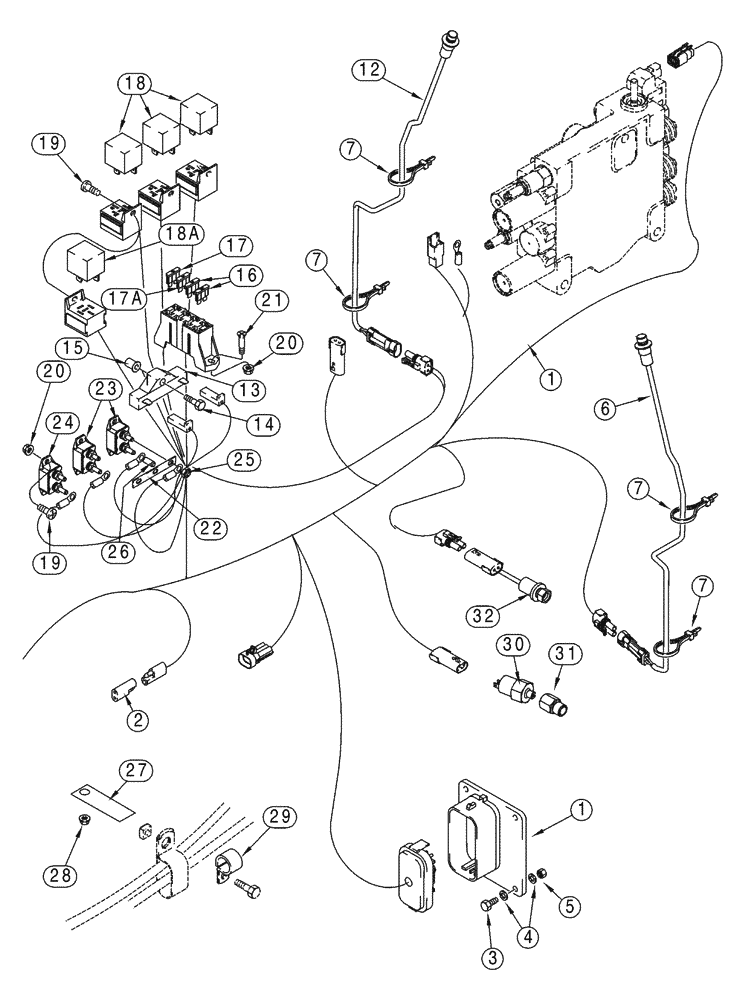

Запчасти Case IH 75XT (04-09) - HARNESS, FRONT - CHASSIS (04) - ELECTRICAL SYSTEMS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

419623A2

Chassis, Includes 2

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

832-41406

NUT,M6 x 1, Cl 8

2шт.

6

256701A2

IGNITION SWITCH

Right Hand, Horn

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

8

242306A2

SWITCH

Operator Presence, Not Illustrated, See Figure 09-29

1шт.

12

256702A3

PARK BRAKE SWITCH

Left Hand, Brake

1шт.

13

107558C1

RESISTOR

25 ohm

1шт.

14

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

15

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

16

A149800

FUSE,10 Amp

10 amp

2шт.

17

A149802

FUSE

20 amp

1шт.

17a

A149803

FUSE,25 Amp

25 amp, Wiper, If Equipped

1шт.

18

D128310

RELAY

30 amp, If Used

3шт.

18a

314451A1

RELAY

40 amp, 12V, Heavy Duty, If Used

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

20

825-5145

NUT,M5, Flg Ser

7шт.

21

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

22

245861C1

BAR

1шт.

23

303886A1

BREAKER

40 amp, Includes Hardware

2шт.

24

303884A1

BREAKER

15 amp, Includes Hardware

1шт.

25

225-14210

NUT,#10-32

1шт.

26

247333A1

CAP

6шт.

27

A37179

CLIP

2шт.

28

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

29

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

30

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.

31

D137424

FITTING

9/16 NF Or x 1/8

1шт.

32

251905A2

SWITCH

Brake Pressure

1шт.
