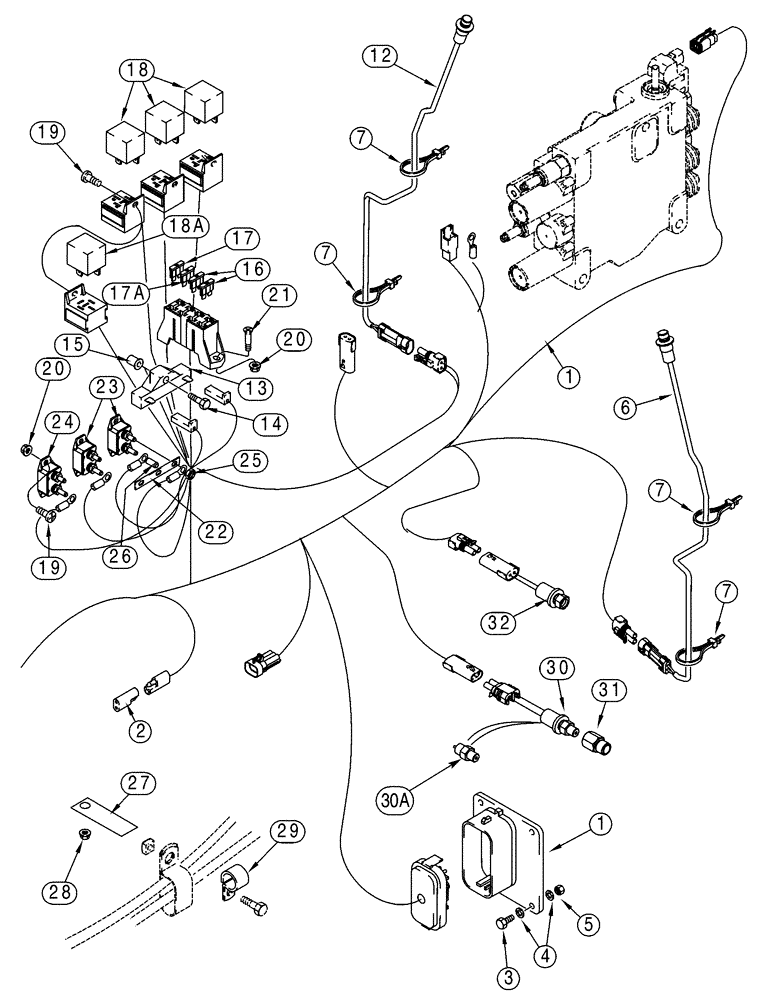

Запчасти Case IH 75XT (04-07) - HARNESS, FRONT - CHASSIS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
North American Models -JAF0318921
1шт.
European Models -JAF0352168
1шт.
1
255148A6
HARNESS
Chassis, Includes 2, Replaces 255148A5, Use With Injection Pump J931397, See Figure 03-06
1шт.
1
349059A1
HARNESS
Chassis, Includes 2, Use With Injection Pump J935677, - JAF0317913, See Figure 03-10
1шт.
1a
385507A1
HARNESS
Chassis, JAF0317914 -, Not Illustrated; Incl. 245435C1 Fuse BLock
1шт.
245435C1
FUSE HOLDER
1шт.
2
L71879
DIODE ELEMENT,400V, 3A
1шт.
3
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
2шт.
4
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
5
832-41306
NUT,M6 x 1, Cl 10
2шт.
6
256701A2
IGNITION SWITCH
Right Hand, Horn, If Equipped
1шт.
7
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
1шт.
8
242306A2
SWITCH
Operator Presence, Not Illustrated, See Figure 09-29
1шт.
12
256702A3
PARK BRAKE SWITCH
Left Hand, Brake
1шт.
13
107558C1
RESISTOR
25 ohm
1шт.
14
190-104
SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"
No. 10 NF x 1-1/2
1шт.
15
D122634
ISOLATOR,12.7mm OD x 14.1mm L
1шт.
16
A149800
FUSE,10 Amp
10 amp
2шт.
17
A149802
FUSE
20 amp
1шт.
17a
A149803
FUSE,25 Amp
25 amp, Wiper, If Equipped
1шт.
18
D128310
RELAY
30 amp, If Used
3шт.
18a
314451A1
RELAY
40 amp, 12V, Heavy Duty, If Used
1шт.
19
840-1516
SCREW,Pan, M5 x 16mm, Cl 4.8
5шт.
20
825-5145
NUT,M5, Flg Ser
7шт.
21
840-1525
SCREW,Pan, M5 x 25mm, Cl 4.8
2шт.
22
245861C1
BAR
1шт.
23
303886A1
BREAKER
40 amp, Includes Hardware
2шт.
24
303884A1
BREAKER
15 amp, Includes Hardware
1шт.
26
247333A1
CAP
6шт.
27
A37179
CLIP
If Used
2шт.
28
825-5146
SERRATED NUT,M6, Flg Ser
2шт.
29
515-22270
CLAMP,1-1/16", Insul, 5/16" Bolt
1-1/16 ID
1шт.
30
293714A1
IGNITION SWITCH
Backup Alarm, - JAF0317913
1шт.
30a
333268A1
SWITCH, PRESSURE
PRESSURE SWITCH Backup Alarm, JAF0317914 -
1шт.
31
D137424
FITTING
9/16 NF Or x 1/8
1шт.
32
251905A2
SWITCH
Brake Pressure
1шт.
