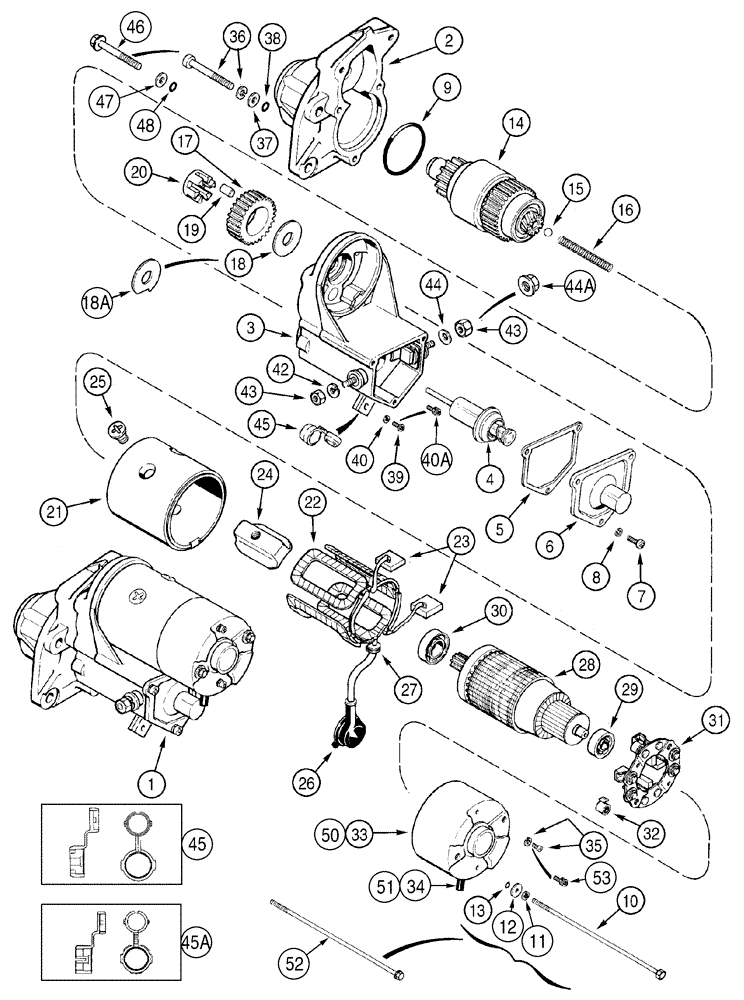

Запчасти Case IH 75XT (04-01) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

Consists Of 2 - 53

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

1шт.

3

104588A1

SOLENOID

Consists Of 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Cover Sheet

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

3шт.

8

NSS

NOT SOLD SEPARAT

Washer

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47243

BOLT

Consists Of 10 - 13, Used With A47237, REF 33, If Used

2шт.

10

A47128

BOLT

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

1шт.

14

104587A1

CLUTCH

1шт.

15

211-1311

BALL,11/32" Dia

200, CRS, If used

1шт.

15

211-1011

BALL,11/32" Dia

3/4; 24,CRS, If Used

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

1шт.

18

A47234

WASHER

If Used

1шт.

18a

141360A1

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

Consists Of 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Coil Assy

1шт.

23

NSS

NOT SOLD SEPARAT

Brush

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe

4шт.

25

NSS

NOT SOLD SEPARAT

Screw

4шт.

26

NSS

NOT SOLD SEPARAT

Boot

1шт.

27

A47241

PLATE

1шт.

28

A47242

ARMATURE

Includes 29, 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Replaces A47248

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

31

A47239

HOLDER

Includes 32

1шт.

32

A47249

SPRING

1шт.

33

A47237

FRAME

Used With REF 10 - 13

1шт.

34

A47238

COVER

Ventilation, Used With REF 33

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

Used With REF 33, If Used

2шт.

36

A47129

CAPTIVE WASHER SCREW

If Used

1шт.

37

195-2015

WASHER

1/4 x 1-3/4 x 1/16, If Used

1шт.

38

A47130

O-RING

If Used

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

M5 x 8, If Used

1шт.

40

892-11005

LOCK WASHER,M5

If Used

1шт.

40a

401126A1

SCREW,M5 x 8mm, W/ LW

If Used

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

1-2шт.

44

A10454

WAVE WASHER

If Used

1шт.

44a

332468A1

NUT

M10

1шт.

45

104589A1

BUSHING

If Used

1шт.

45a

141354A1

RING

If Used

1шт.

A47230

BOLT

Consists Of 46 - 48

3шт.

46

332475A1

BOLT

If Used

1шт.

47

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), If used

1шт.

48

332476A1

O-RING

If Used

1шт.

50

401106A1

FRAME

Used With REF 52, If Used

1шт.

51

141355A1

COVER

Used With, If Used

1шт.

52

332467A1

BOLT

M6 x 181, Replaces REF 10 - 13, If Used

1шт.

53

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

If Used

1шт.
