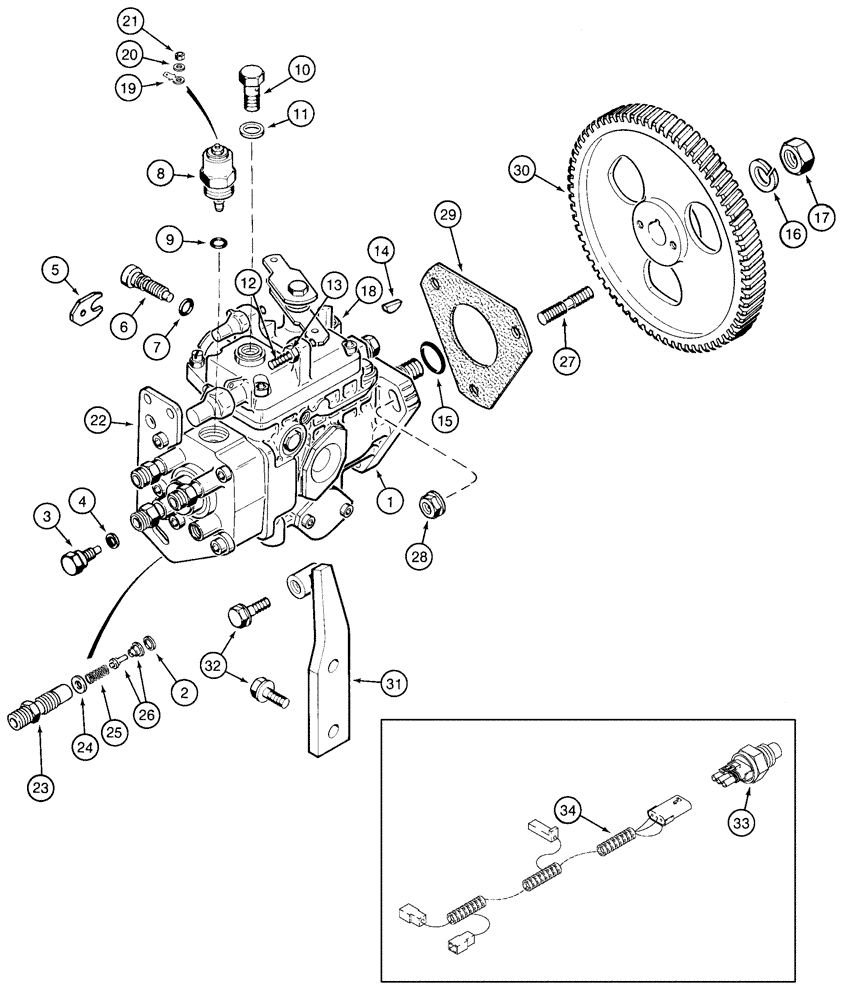

Запчасти Case IH 75XT (03-10) - FUEL INJECTION - PUMP AND DRIVE (03) - FUEL SYSTEM

*

4-390 Emissions Certified Engine

1шт.

1

J935677

PUMP, FUEL INJECTION

PUMP, INJECTION Consists Of 2 - 26, N.A. Only

1шт.

1

JR935677

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC935677

CORE-INJECTION PUMP

Return Number

1шт.

1

J935671

PUMP

Consists Of 2 - 26, Europe Only

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

4шт.

3

J903572

BLEED SCREW,M8 x 1 x 23.10mm

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

1шт.

5

J904786

PLATE

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

8

A77753

SOLENOID

1шт.

9

J903577

SEAL

1шт.

10

J905465

BANJO BOLT

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

1шт.

13

J904783

NUT

1шт.

14

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

15

J920393

SEAL

1шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

17

J903738

NUT

M14

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

20

J907481

WASHER

1шт.

21

J907480

NUT

1шт.

22

J905696

SUPPORT

1шт.

23

J910794

FITTING

4шт.

24

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

4шт.

25

J910796

SPRING

4шт.

26

J910795

BY-PASS VALVE

4шт.

27

J902501

STUD

M8 x 48

3шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

29

J931607

GASKET

1шт.

30

87590645

GEAR

Drive Gear; Replaces J936021, J931387

1шт.

31

J905313

LEVER

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

33

87608380

SENSOR,1/2" - 14

Temperature Sensor; Replaces J915945

1шт.

34

J918364

HARNESS

1шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
