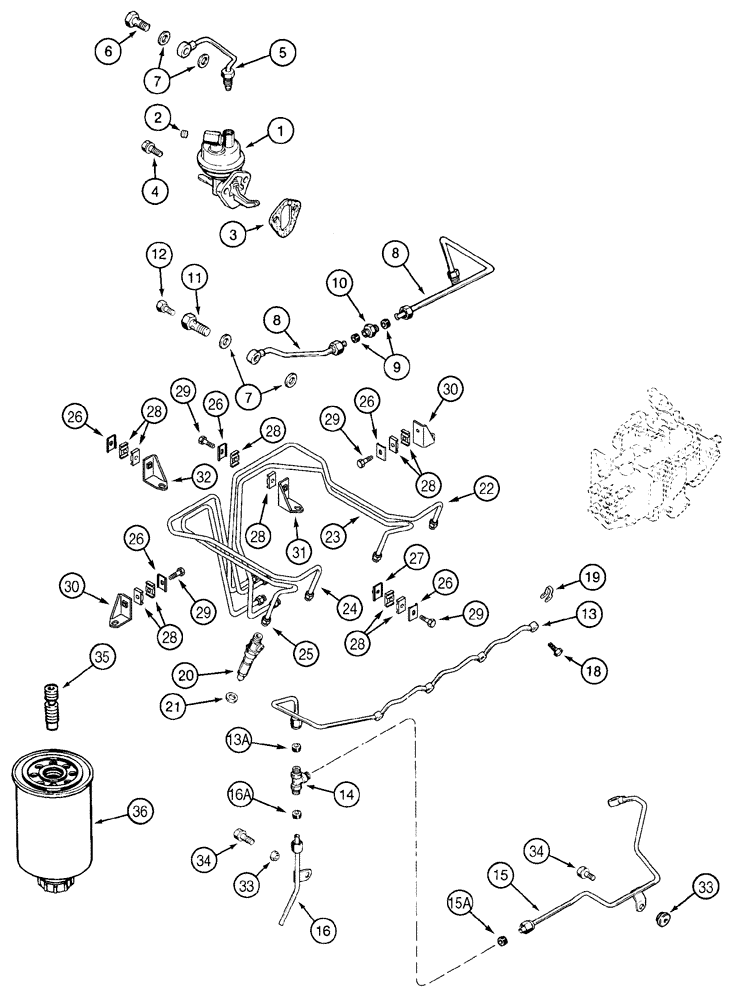

Запчасти Case IH 75XT (03-07) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
*
4-390 Emissions Certified Engine
1шт.
*
Use With Injection Pump J935677, J935671
1шт.
1
J928143
PUMP
1шт.
2
221-841
PLUG
1/4 PT
1шт.
3
J931059
GASKET
1шт.
4
845-8025
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
2шт.
5
J905649
FUEL TUBE,8 mm OD x 233.5 mm L
1шт.
7
J935171
SEALING WASHER
12 x 19 x 1,5 mm, Replaces J918191
2шт.
8
J918640
FUEL TUBE
Consists Of 9, 10
1шт.
9
222-103
SLEEVE,5/16" Tube
2шт.
10
222-4
FITTING,9/16"-24, Flex Tube
5/16 OD
1шт.
J905860
BANJO BOLT
Consists Of 11, 12
1шт.
11
NSS
NOT SOLD SEPARAT
Bolt
1шт.
12
J905403
CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8
1шт.
13
J909695
FUEL TUBE
Includes 13A
1шт.
13a
222-101
SLEEVE,3/16" Tube
1шт.
14
222-121
TEE,3/16", Flex Tubing
1шт.
15
J905699
FUEL TUBE,4.76 mm OD
Includes 15A
1шт.
15a
222-101
SLEEVE,3/16" Tube
1шт.
16
J905692
FUEL TUBE
Includes 16A
1шт.
16a
222-101
SLEEVE,3/16" Tube
1шт.
18
J905307
BANJO BOLT,M6 x 1 x 14.30mm
4шт.
20
J935213
INJECTOR ASSY.
See Figure 03-11
4шт.
20
JR935213
REMAN-FUEL INJECTOR
REMANUFACTURED INJECTION NOZZLE
4шт.
20
JC935213
CORE-FUEL INJECTOR
Return Number, INJECTION NOZZLE
4шт.
22
J935691
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L
No. 1
4шт.
23
J935693
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L
No. 2
4шт.
24
J935696
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L
No. 3
4шт.
25
J935698
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L
No. 4
4шт.
27
J907546
BRACE
4шт.
30
J935746
BRACE
2шт.
31
J935748
BRACE
1шт.
32
J935700
BRACE
1шт.
33
J928759
SEALING WASHER
4шт.
34
844-8016
BOLT,Hex, M8 x 16mm, Cl 8.8
4шт.
35
J925955
ADAPTER,M16 x 1.5 x M16 x 1.5
1шт.
36
J931062
FILTER
1шт.
Выбрано товаров: 43
