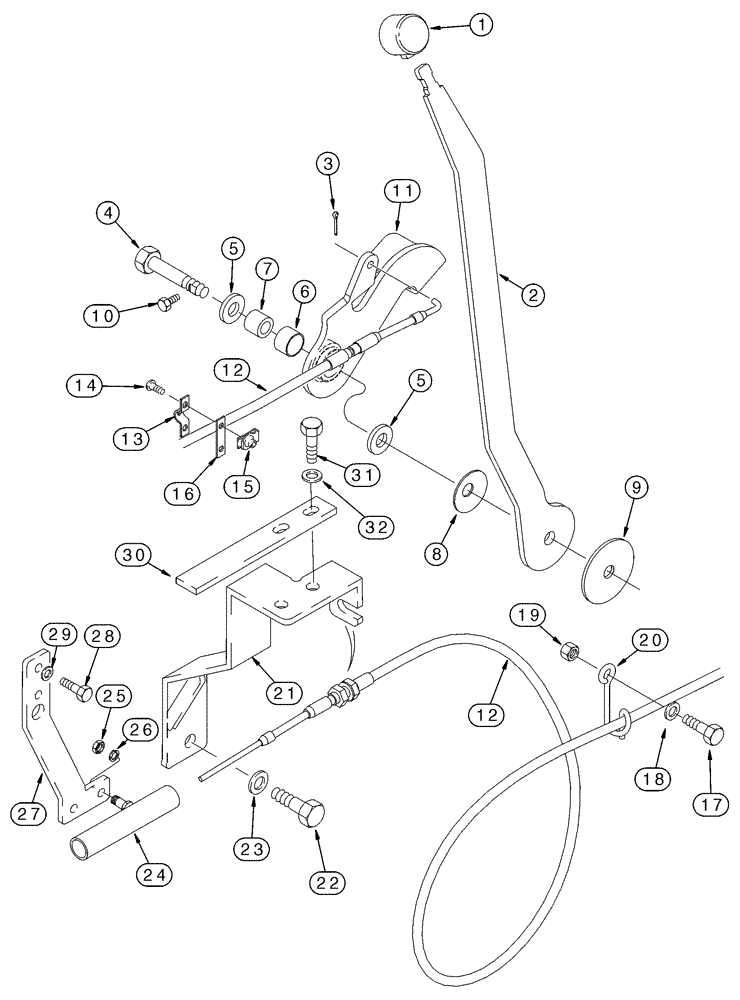

Запчасти Case IH 75XT (03-02) - CONTROLS - THROTTLE (NORTH AMERICA) (03) - FUEL SYSTEM

4-390 Emissions Certified Engine

1шт.

Use With Injection Pump J931397

1шт.

1

A177436

KNOB

1шт.

2

186904A1

CONTROL LEVER

Hand Operated

1шт.

3

432-48

COTTER PIN,1/16" x 1/2"

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

6

186905A1

BUSHING

1шт.

7

187035A2

SLEEVE

1шт.

8

R14771

WASHER

1шт.

9

1342374C1

DISC

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

11

186908A2

LEVER

Foot Operated

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

296281A1

CABLE,1828.8mm L

1шт.

13

304818A1

COLLAR CLAMP

1шт.

14

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

15

833-40304

SPRING NUT,M4, U

M4

2шт.

16

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

2шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

20

236217A1

CRADLE

1шт.

21

321881A1

SUPPORT

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

24

1974525C2

BALL JOINT

Replaces 1974525C1

1шт.

25

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

26

492-11025

LOCK WASHER,1/4"

1шт.

27

346996A1

LEVER

Accelerator, Replaces 321878A1

1шт.

28

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

30

321899A1

RETAINER

1шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

32

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

33

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

35

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
