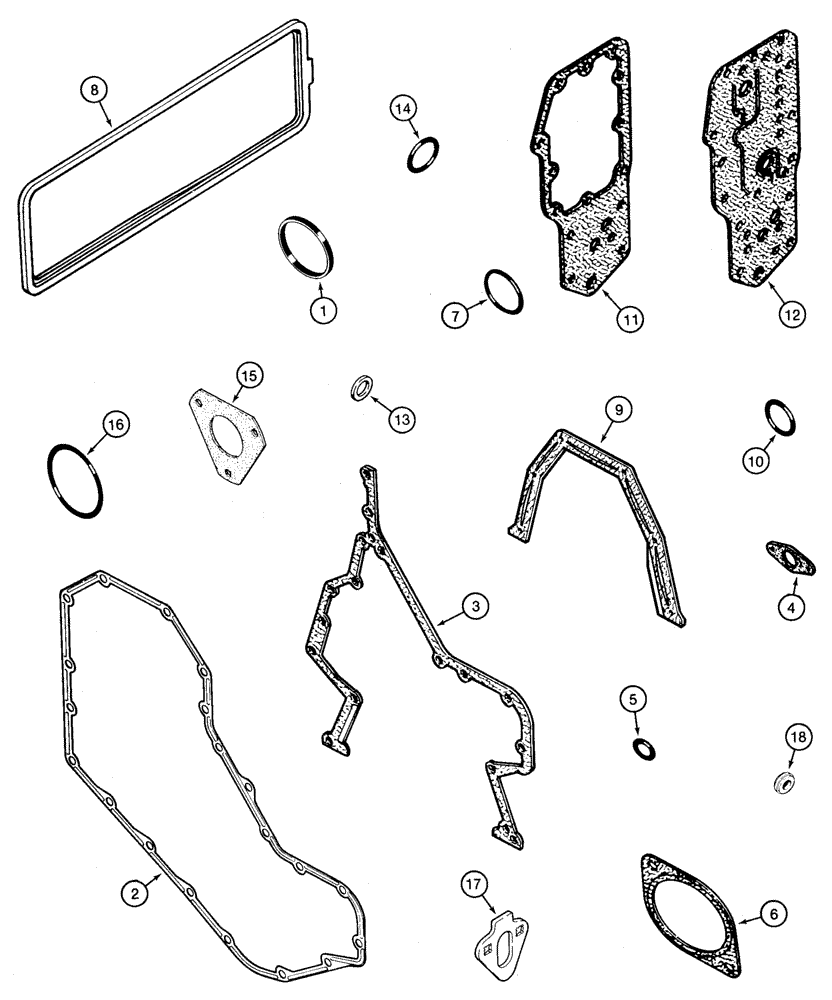

Запчасти Case IH 75XT (02-25) - GASKET KIT (02) - ENGINE

4-390 Emissions Certified Engine

1шт.

Use With Injection Pump J935677, J935671

1шт.

Cylinder Block

1шт.

A77860

GASKET KIT

Consists Of 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-11

1шт.

2

J914385

GASKET,1.02mm Thk

See Figure 02-11

1шт.

3

J931351

GASKET

See Figure 02-11

1шт.

4

J905595

GASKET

1шт.

5

J913994

O-RING

See Figure 02-10

1шт.

6

J929751

GASKET

See Figure 02-10

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure 02-09

1шт.

8

J283767

GASKET,7.4mm Thk

See Figure 02-18

1шт.

9

J928493

GASKET

See Figure 02-19

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-18

1шт.

11

J942914

GASKET

See Figure 02-13

1шт.

12

J929792

GASKET,1.2mm Thk

See Figure 02-13

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-14

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, Not Used In This Application

1шт.

15

J931607

GASKET

See Figure 03-10

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-20

1шт.

17

J931059

GASKET

See Figure 03-07

1шт.

18

J928759

SEALING WASHER

See Figure 02-18

6шт.
