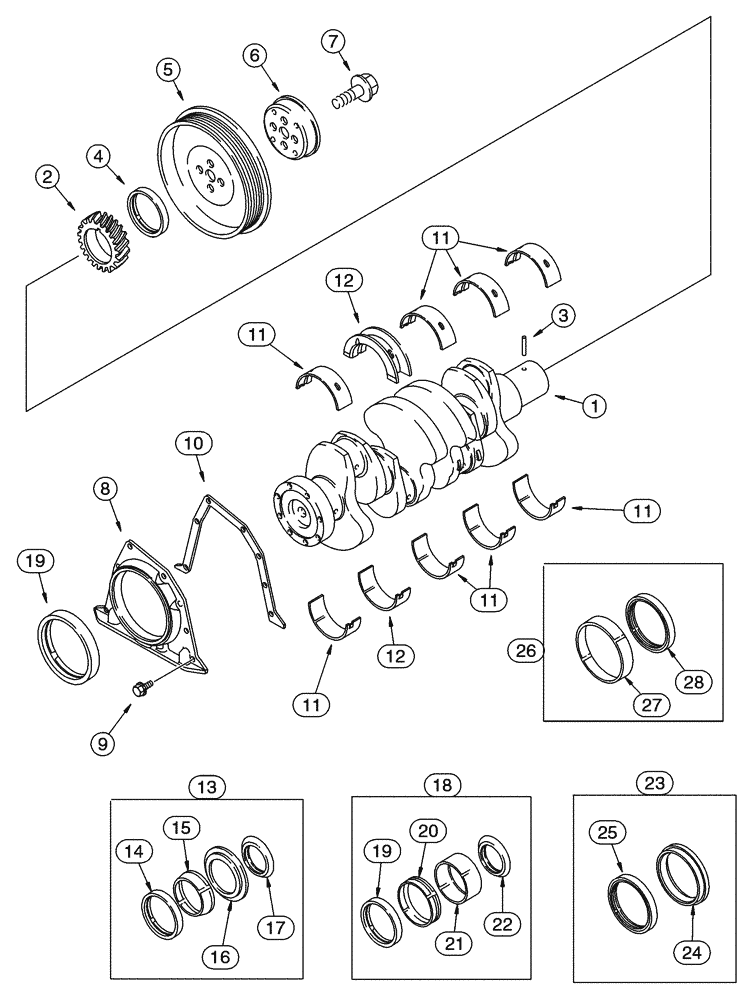

Запчасти Case IH 75XT (02-19) - CRANKSHAFT (02) - ENGINE

4-390 Emissions Certified Engine

1шт.

JR908031

CRANKCASE

Remanufactured

1шт.

J929036R

REMAN-CRANKSHAFT

75XT, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Includes 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

75XT, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J921043

REAR COVER

N.A. Only

1шт.

8

J936904

REAR COVER

Europe Only

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

J804940

BEARING SET

Standard

4шт.

11

A77472

BEARING SET

0,25 mm, Undersize

4шт.

11

A77474

BEARING SET

0,50 mm, Undersize

4шт.

11

A77476

BEARING SET

0,75 mm, Undersize

4шт.

11

A77478

BEARING SET

1,0 mm, Undersize

4шт.

12

A77895

THRUST BEARING,KIT

Standard

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize, Oversize

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize, Oversize

1шт.

13

A77889

SEAL PACKAGE

Front, Consists Of 15 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Front

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J353978

SEAL PACKAGE

Replaces A77809, Crankshaft, Rear, Inc. 24, 25, N.A. Only

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear, Consists Of 24, 25, Europe Only

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
