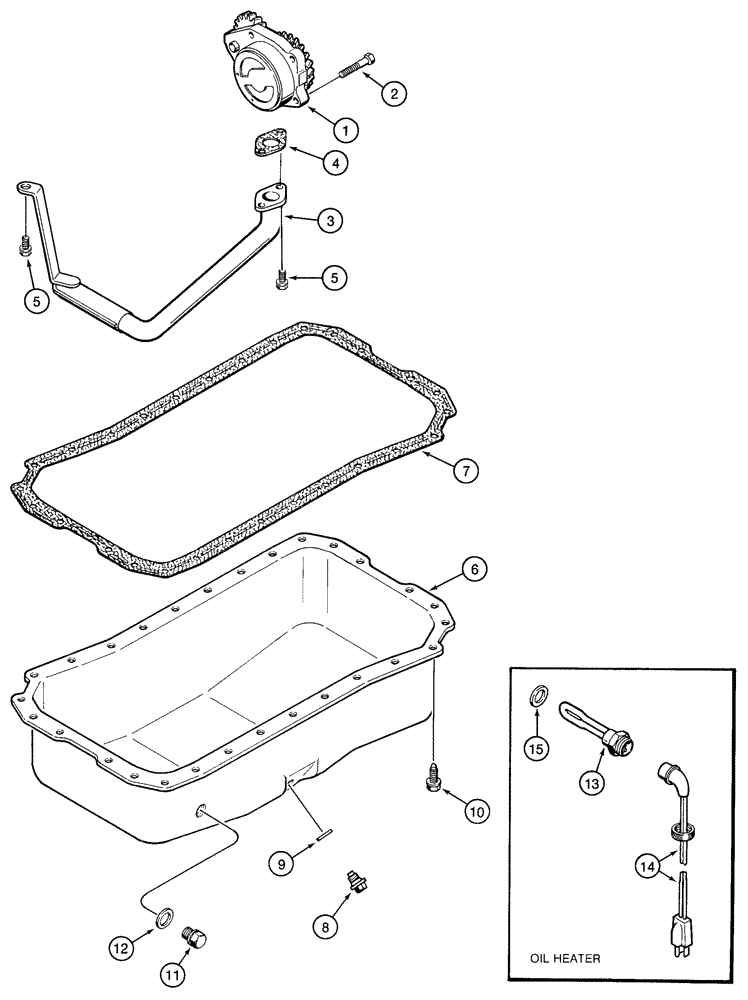

Запчасти Case IH 75XT (02-14) - OIL PUMP, PAN - HEATER (02) - ENGINE

*

4-390 Emissions Certified Engine

1шт.

1

CASJ937028

PUMP, ENGINE OIL

Replaces J932449

1шт.

1

JR937028

REMAN-ENG OIL PUMP

75XT

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905223

TUBE

1шт.

4

J931349

GASKET

1шт.

5

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

N.A. Only

2шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Europe Only, Replaces J907860

2шт.

6

J907570

PAN

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Pan

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Consists Of 4, 7, 9

1шт.

*

Engine Oil Heater

1шт.

*

120 Volt

1шт.

A77490

KIT

120V, Consists Of 13, 14, Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

240 Volt

1шт.

13

NSS

NOT SOLD SEPARAT

240V, Element

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
