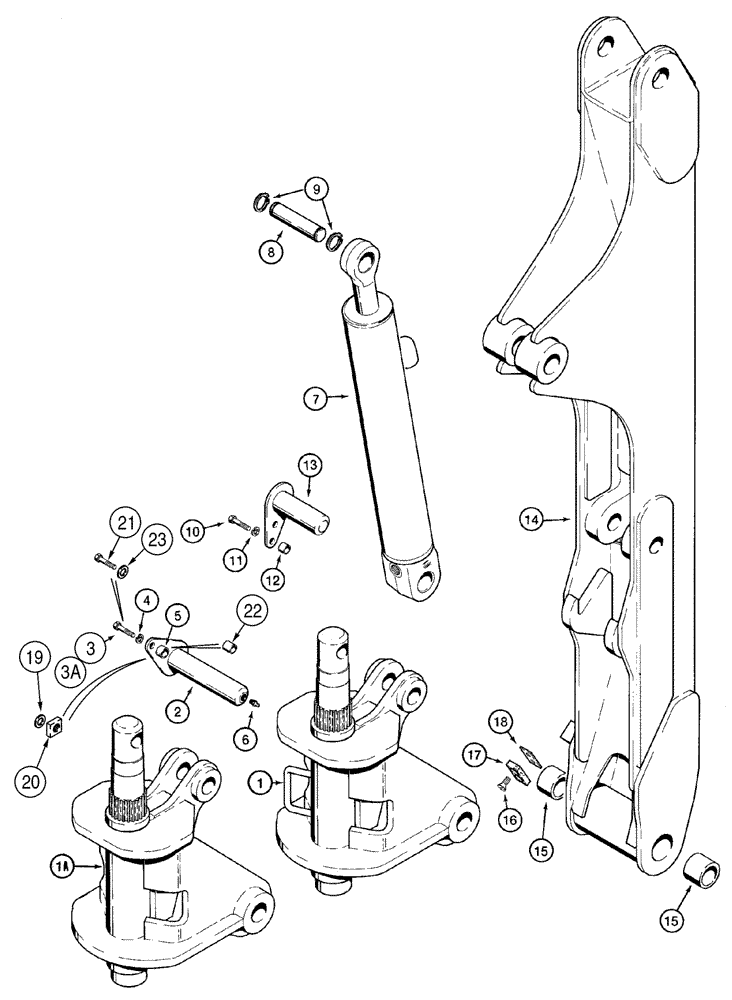

Запчасти Case IH 75XT (09-54) - BACKHOE - SWING TOWER AND BOOM (NORTH AMERICA) (09) - CHASSIS

D125 Backhoe

1шт.

1

H674114

POST

With Hose Retaining Rod, If Equipped

1шт.

1a

259238A1

PIVOT ASSY.

Without Hose Retaining Rod, If Equipped

1шт.

2

H674111

PIN

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If Used

1шт.

3a

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

If Used

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

D95553

SPACER

If Equipped, Not Used With 1A

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

1346450C2

CYLINDER ASSY.

76 ID x 551 mm strk, Boom, See Figure 08-54, No Longer Available, Order 305352A1

1шт.

7

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

76 ID x 551 mm strk, Boom, See Figure 08-54

1шт.

8

H437348

PIN,38.15mm OD x 171mm L

1шт.

9

100-16150

SNAP RING,#150, Ext

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

H438253

SPACER

1шт.

13

H674112

PIN

1шт.

H674107

BOOM

Consists Of 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Boom

1шт.

15

H437317

BUSHING

2шт.

16

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

16 x 1

2шт.

17

H439260

BAR

1шт.

18

H439261

BAR

3шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

21

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Replaces 413-628, Ref. 3

1шт.

22

349191A1

SPACER

11-7/64 ID; 33 mm

1шт.

23

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.
