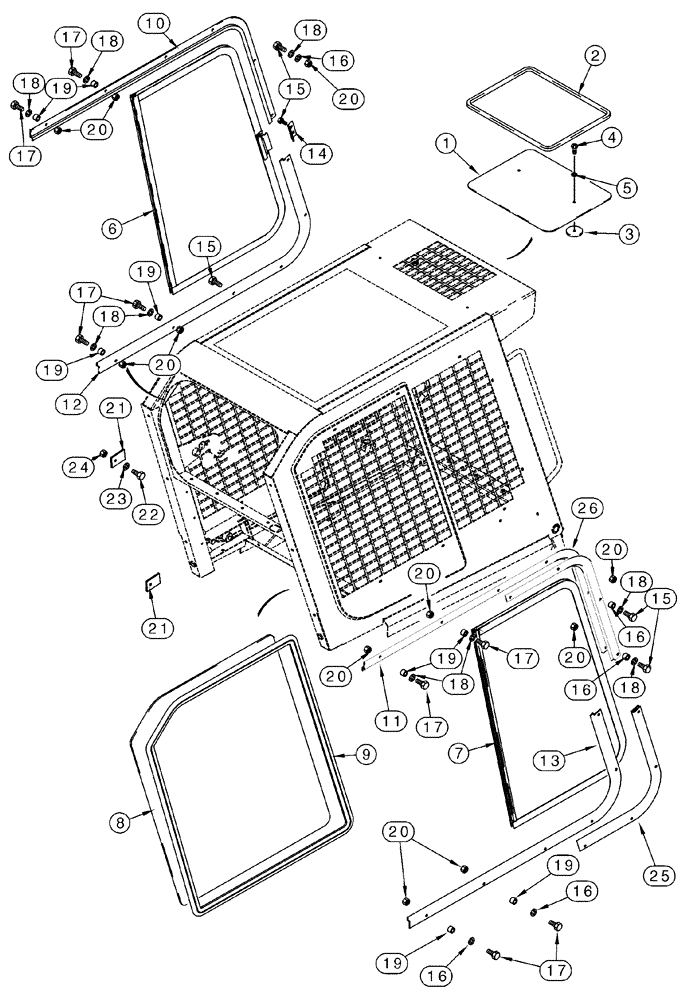

Запчасти Case IH 75XT (09-47) - WINDOWS - SIDE AND TOP (09) - CHASSIS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

239916A1

WINDOW

Top

1шт.

2

240657A1

SEALING STRIP

1310 mm (51-5/8 in), Cut From 382086A1

1шт.

3

E99641

CAP

2шт.

4

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

5

103777A1

SEALING WASHER

2шт.

6

238455A3

GLASS

Left Hand, Includes 368898A1, 362346A1

1шт.

368898A1

LATCH

Slider

1шт.

7

238454A3

GLASS

Right Hand, Includes 362346A1

1шт.

362346A1

SEAL KIT

Window Seal

1шт.

8

222755A1

GLASS

Stationary

2шт.

9

233427A1

SEAL, GLASS

2900 mm (114-3/16 in), Used With 8

2шт.

10

222749A2

BEZEL

Upper Left Hand

1шт.

11

222743A2

BEZEL

Upper Right Hand

1шт.

12

222748A2

BEZEL

Lower Left Hand

1шт.

13

222742A2

BEZEL

Lower Right Hand

1шт.

14

257128A2

LATCH ASSY.

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

16шт.

16

283912A1

SPACER

If Equipped

16шт.

17

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

19

283786A1

SPACER

8шт.

20

832-41306

NUT,M6 x 1, Cl 10

24шт.

21

258825A2

BLOCK

4шт.

22

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

832-41306

NUT,M6 x 1, Cl 10

4шт.

25

283916A2

SEAL

Lower

2шт.

26

283917A2

SEAL

Upper

2шт.
