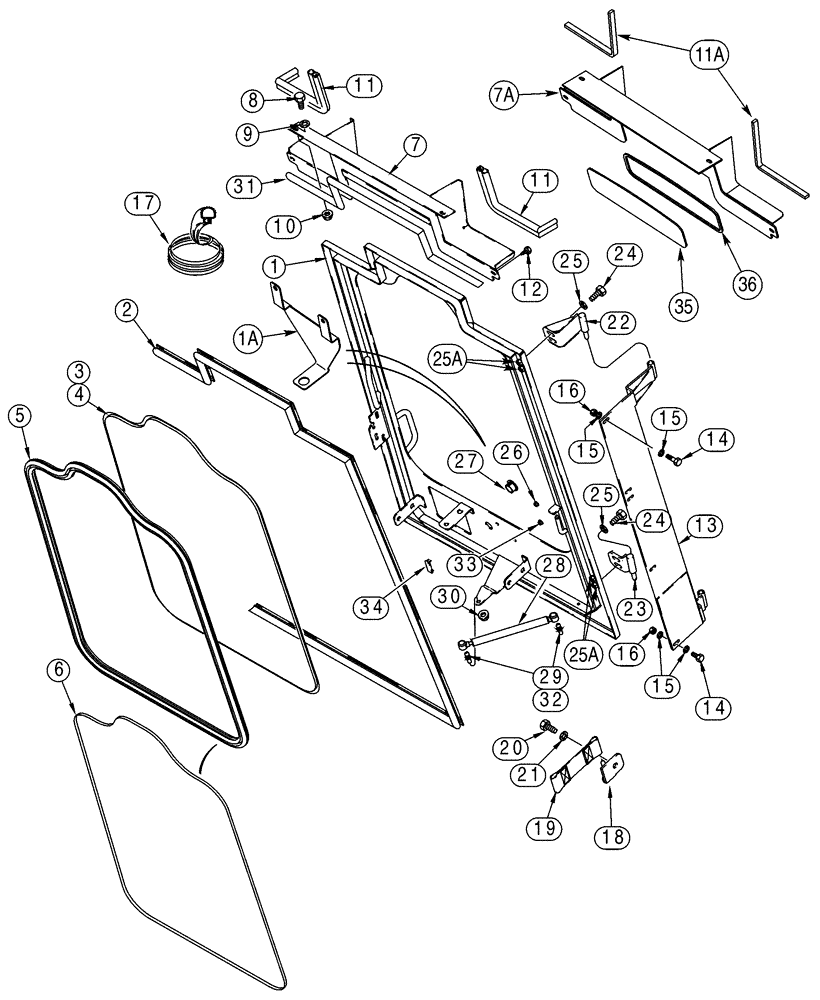

Запчасти Case IH 75XT (09-42) - DOOR, FRONT - WINDSHIELD (09) - CHASSIS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

255176A2

CHASSIS

Door, Includes Ref. 1 -36

1шт.

1

255176A4

FRAME

Front, Includes 321385A1, Ref 1A, 832-41308, Ref 25A

1шт.

1a

321385A1

SUPPORT

Washer Bottle

1шт.

2

243134A1

SEALING STRIP

3610 mm (142-1/8 in)

1шт.

3

257017A2

WINDSHIELD

Polycarbonate (Lexan), If Used

1шт.

4

255172A2

WINDSHIELD

Tempered Glass, If Used

1шт.

5

233546A1

GLASS SEAL

2550 mm (100-1/2 in)

1шт.

6

234934A1

STRIP-GASKET

2550 mm

1шт.

7

233560A3

SHEET

If Used

1шт.

7a

338489A1

SHIELD

Models With Two Windows

1шт.

8

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

11

282284A1

SEALING STRIP

300 mm (11-7/8 in), If Used

2шт.

11a

338192A1

DOOR SEAL

Models With Two Windows

2шт.

12

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

2шт.

13

234630A2

HINGE

1шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

5шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

16

832-41306

NUT,M6 x 1, Cl 10

5шт.

17

291900A1

SEALING STRIP

1000 mm (39-1/2 in)

1шт.

18

255337A2

FIXED HINGE

1шт.

19

255860A2

STRAP

1шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

21

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

1шт.

22

244529A1

HINGE

Upper

1шт.

23

244530A1

HINGE

Lower

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

25a

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

26

353-430

PLUG,1/4" Hole, Nylon

1/4, If Equipped, Models Without Windshield Wiper

1шт.

26

353-434

PLUG

5/16, If Equipped, Models Without Windshield Wiper

1шт.

27

353-431

PLUG,13/16" Hole, Nylon

13/16, Models Without Windshield Wiper

1шт.

28

233557A3

GAS STRUT

1шт.

29

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

30

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

31

291901A1

PROTECTOR

762 mm

1шт.

32

254307A1

CLIP

2шт.

33

353-435

PLUG

3/8, Models Without Windshield Wiper

1шт.

34

86000535

PLUG,1.427" x .62", Plastic

1шт.

35

338047A1

WINDOW

Top Front Door

1шт.

36

338059A1

RUBBER STRIP

Top Window

1шт.
