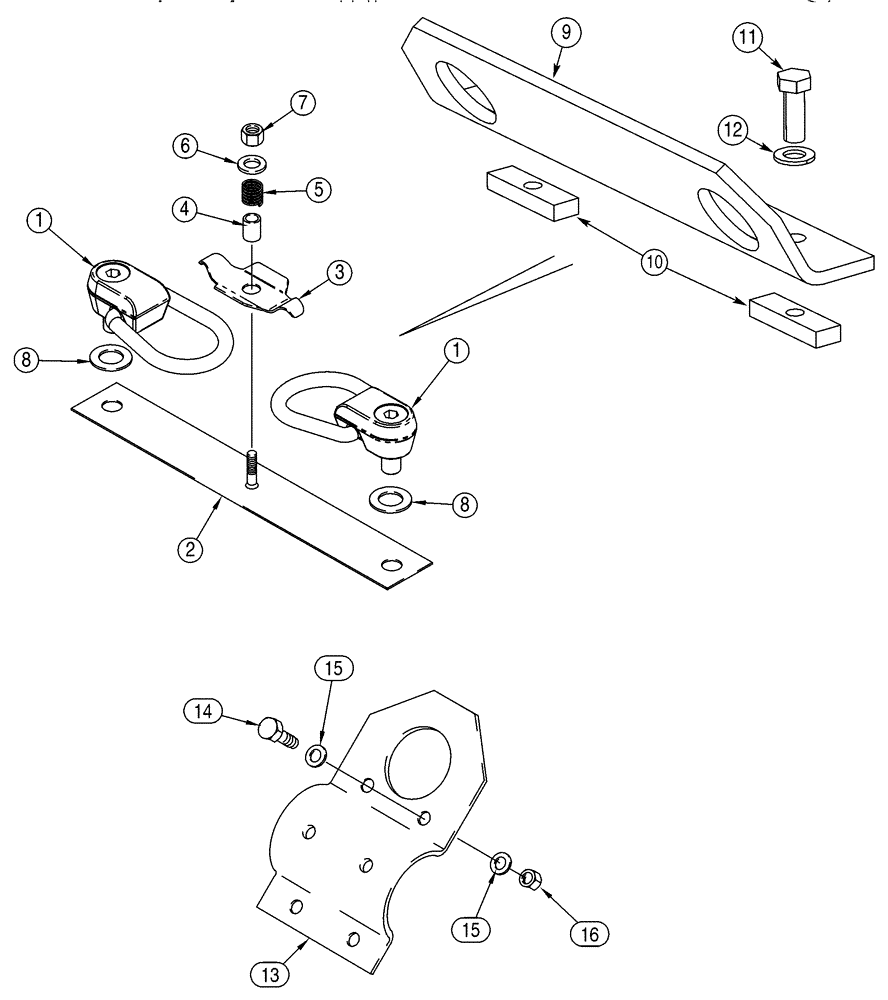

Запчасти Case IH 75XT (09-37) - CANOPY, ROPS - LIFT HOOK (09) - CHASSIS

Front

1шт.

If Used

1шт.

1

277932A2

LOAD HOOK

Front, Replaces 277932A1

2шт.

2

295385A2

SUPPORT

1шт.

3

291514A2

ARRESTER

1шт.

4

297827A1

BUSHING

1шт.

5

229383A1

SPRING

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

8

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm, If Used

2шт.

8

334876A1

WASHER

20 x 44 x 3 mm, Hardened, If Used

2шт.

9

328709A1

PLATE

Lift Hook, Order Decals Separately 09-59, Ref 11

1шт.

10

327550A1

BAR

2шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

12

495-11081

WASHER,3/4", SAE

2шт.

Rear

1шт.

13

315937A1

WELDABLE LUG

Rear

4шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

16

829-1412

NUT,M12, Cl 10.9

8шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
