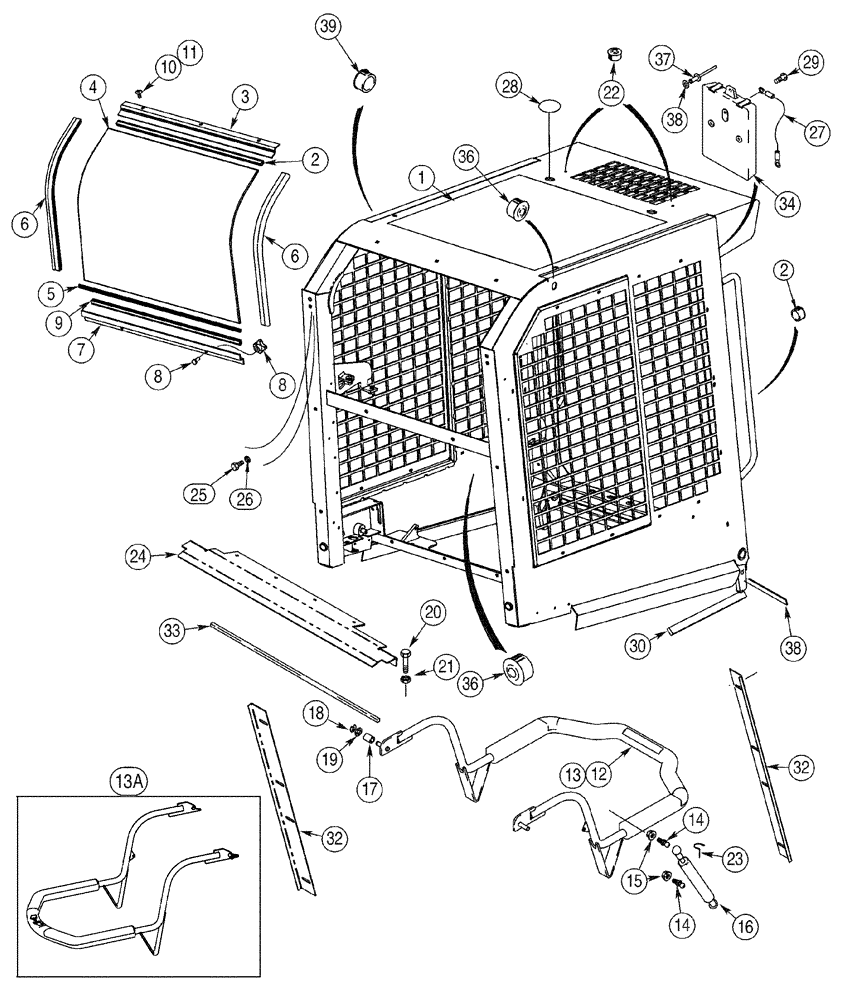

Запчасти Case IH 75XT (09-35) - CANOPY, ROPS - FRAME AND SEAT BAR (09) - CHASSIS

Models With Floor Heater and Models Without Heater

1шт.

1

399707A1

SERVICE KIT

ROPS, Two Piece Side Screen, North American Models JAF0318373 - JAF0318921, European Models JAF0352125 - JAF0352168, Includes Decals Ref 5 (09-59), Ref 1, 6 (09-62), Ref 1, 2 (09-60), Also Includes 2 - 11, Machinery Item

1шт.

1

432312A1

CAB

ROPS, One Piece Side Screen, Not Illustrated, North American Models JAF0318922 -, European Models JAF0352169 -, Includes Decals Ref 5 (09-52), Ref 1, 6 (09-62), Ref 1, 2 (09-60), Also Includes 2 - 11, Machinery Item

1шт.

2

321274A1

SEAL

1шт.

3

321268A1

CHANNEL

1шт.

4

321269A1

GLASS

Rear

1шт.

5

333988A1

SEAL

639 mm (25-5/32 in), Lower Rear Window

1шт.

6

321276A1

SEAL

Rear Window Edge

2шт.

7

321270A1

RETAINER

334 mm (13-5/32 in) Between Bolt Holes, If Used

1шт.

7

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes, If Used

1шт.

8

362337A1

KNOB

2шт.

9

321275A1

SEAL

587 mm (23-1/8 in), Bottom Glass Seal

1шт.

10

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

12

250842A3

BAR ASSY.

North American Models -JAF0255315, European Models -JAF0274307

1шт.

13

318038A1

BAR ASSY.

North American Models JAF0255316-JAF0318921, European Models JAF0274308-JAF0352168

1шт.

13a

419844A1

BAR

North American Models JAF0318922-, European Models JAF0352169-

1шт.

14

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

16

189787A2

SHOCK ABSORBER

1шт.

17

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

23

254307A1

CLIP

2шт.

24

292190A2

COWL

Hood

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces L11541, L18331

1шт.

28

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

29

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

30

313149A1

SEAL

355 mm (14 in), Screen Frame

2шт.

31

313150A1

SEAL

774 mm (30-1/2 in), Toe Guard

2шт.

32

280476A2

ANGLE

ROPS to Frame Seal Holder

2шт.

33

315083A1

SEALING STRIP

610 mm (40 inch), Window Frame, Europe Only

1шт.

34

R46464

CASE

1шт.

35

353-402

PLUG,Dome, .375" hole, Nylon

1-2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

1-3шт.

37

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

38

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

39

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm (1 in), Gray, If Used

2шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
