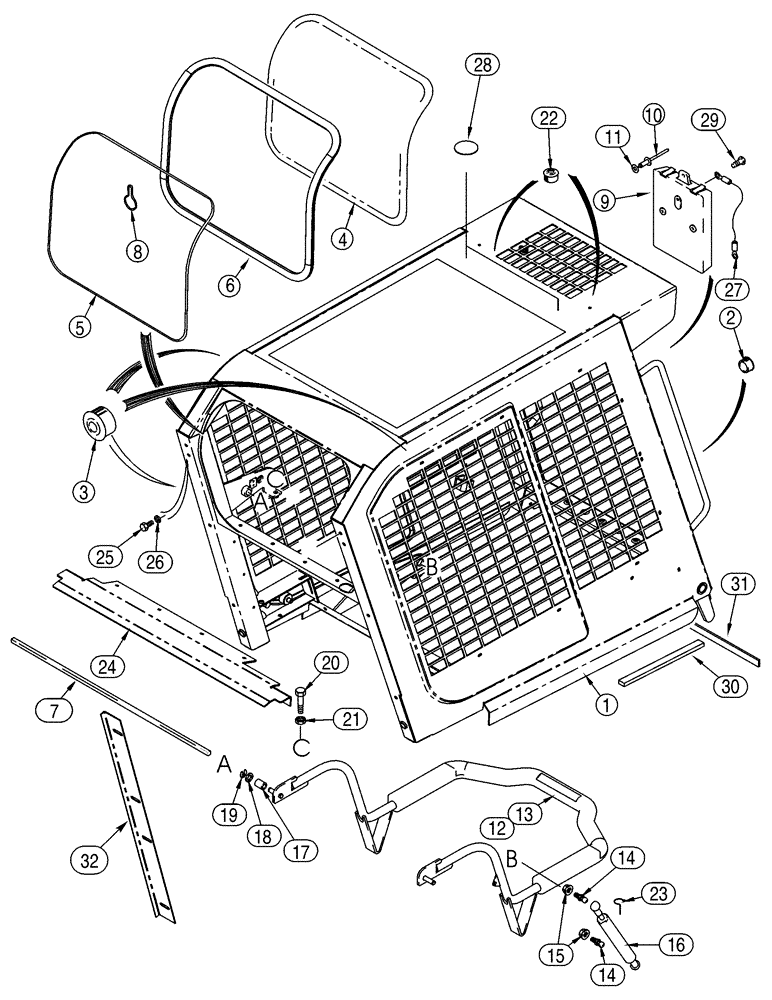

Запчасти Case IH 75XT (09-34) - CANOPY, ROPS - FRAME AND SEAT BAR (09) - CHASSIS

Models With Floor Heater and Models Without Heater

1шт.

1

388291A1

ROPS

ROPS, Includes Decals Ref 5 (09-59), Ref 1, 6 (09-62), Ref 1, 2 (09-60), Machinery Item

1шт.

399707A1

SERVICE KIT

ROPS, JAF0318373 -, North America Only, JAF0352125 -, Europe Only, See Figure 09-35

1шт.

2

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

4

253422A2

GLASS

Rear

1шт.

5

230845A1

BAND

89 in

1шт.

6

199656A1

SEAL, GLASS

89 in

1шт.

7

315083A1

SEALING STRIP

610 mm (40 inch), Window Frame, Europe Only

1шт.

8

107996A1

RING

1шт.

9

R46464

CASE

1шт.

10

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

11

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

12

250842A3

BAR ASSY.

-JAF0255315, North America Only, -JAF0274307, Europe Only

1шт.

13

318038A1

BAR ASSY.

JAF0255316-, North America Only, JAF0274308-, Europe Only

1шт.

14

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

16

189787A2

SHOCK ABSORBER

1шт.

17

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

23

254307A1

CLIP

2шт.

24

292190A2

COWL

Hood

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces L11541, L18331

1шт.

28

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

29

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

30

313149A1

SEAL

355 mm (14 in), Screen Frame

2шт.

31

313150A1

SEAL

774 mm (30-1/2 in), Toe Guard

2шт.

32

280476A2

ANGLE

ROPS to Frame Seal Holder

2шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
