Запчасти Case IH 75XT (09-33) - SEAT - SUSPENSION (09) - CHASSIS

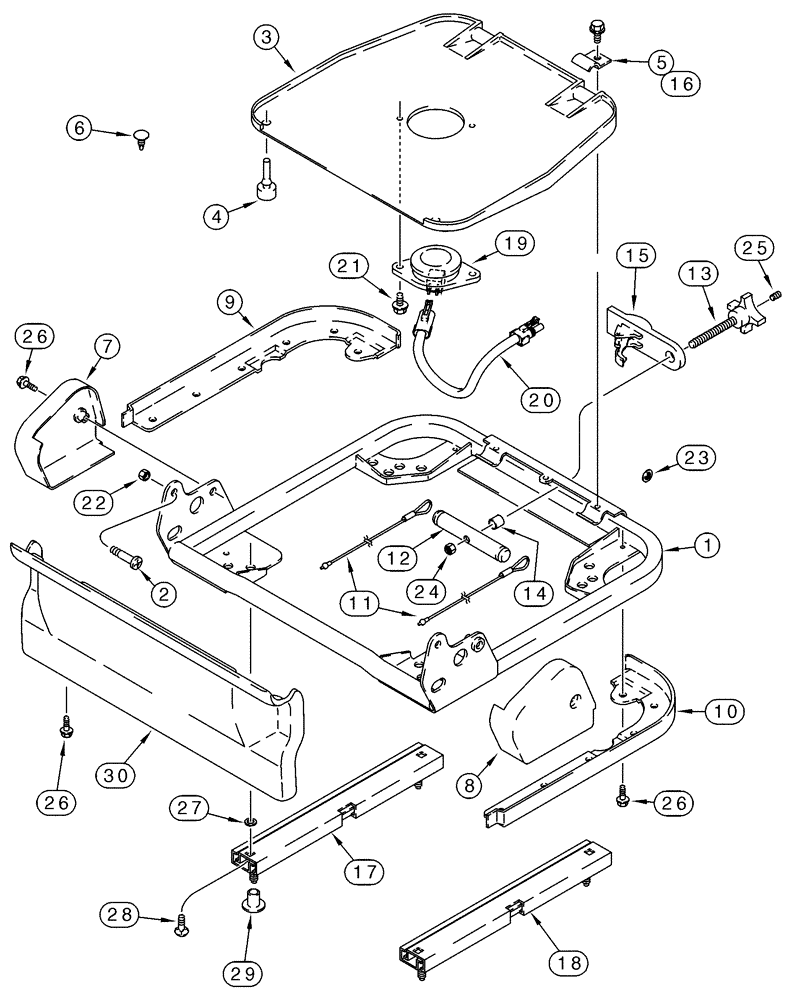

Схема запчастей Case IH 75XT - (09-33) - SEAT - SUSPENSION (09) - CHASSIS
8
30
12
29
26
3
16
18
7
22
26
23
9
24
17
15
10
21
20
25
27
2
19
5
13
6
26
14
1
28
4
11

Артикул

Название

Примечание

Количество

308307A1

SEAT

Consists Of 1 - 30, Includes Figure 09-30 - 09-33

1шт.

1

NSS

NOT SOLD SEPARAT

Frame, Seat

1шт.

291757A1

ASSEMBLY

Consists Of 2

1шт.

2

NSS

NOT SOLD SEPARAT

Bolt, Special

3шт.

291758A1

ASSEMBLY

Consists Of 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Base

1шт.

291752A1

ASSEMBLY

Consists Of 4

1шт.

4

NSS

NOT SOLD SEPARAT

Bumper

2шт.

5

NSS

NOT SOLD SEPARAT

Clip

2шт.

291760A1

ASSEMBLY

Consists Of 6

1шт.

6

NSS

NOT SOLD SEPARAT

Clip

7шт.

291751A1

ASSEMBLY

Consists Of 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Left Hand

1шт.

8

NSS

NOT SOLD SEPARAT

Cover, Right Hand

1шт.

291750A1

ASSEMBLY

Consists Of 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Fender, Left Hand

1шт.

10

NSS

NOT SOLD SEPARAT

Fender, Right Hand, Not Illustrated

1шт.

291753A1

ASSEMBLY

Consists Of 11

1шт.

11

NSS

NOT SOLD SEPARAT

Cable

2шт.

12

291772A1

BAR

1шт.

291755A1

ASSEMBLY

Consists Of 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Knob, Weight Adjustment

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer

1шт.

15

291769A1

INDICATOR

Weight Adjuster

1шт.

291759A1

ASSEMBLY

Consists Of 16

1шт.

16

NSS

NOT SOLD SEPARAT

Clip

2шт.

291768A1

ASSEMBLY

Consists Of 17, 18, 27, 28

1шт.

17

NSS

NOT SOLD SEPARAT

Slide, Left Hand, Order 291768A1

1шт.

18

NSS

NOT SOLD SEPARAT

Slide, Right Hand, Order 291768A1

1шт.

19

242306A2

SWITCH

Operator Presence, Replaces 291773A1, 242306A1

1шт.

20

302137A1

HARNESS

Seat, Two Connector, Not Included In Assembly, Purchase Separately

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt

4шт.

22

NSS

NOT SOLD SEPARAT

Nut

2шт.

23

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

24

NSS

NOT SOLD SEPARAT

Nut

1шт.

25

NSS

NOT SOLD SEPARAT

Setscrew

1шт.

26

NSS

NOT SOLD SEPARAT

Bolt, Special

8шт.

27

NSS

NOT SOLD SEPARAT

Spacer

4шт.

28

NSS

NOT SOLD SEPARAT

Bolt, Special

4шт.

29

NSS

NOT SOLD SEPARAT

Cap

4шт.

30

291775A1

BELLOWS

1шт.

Выбрано товаров: 41
