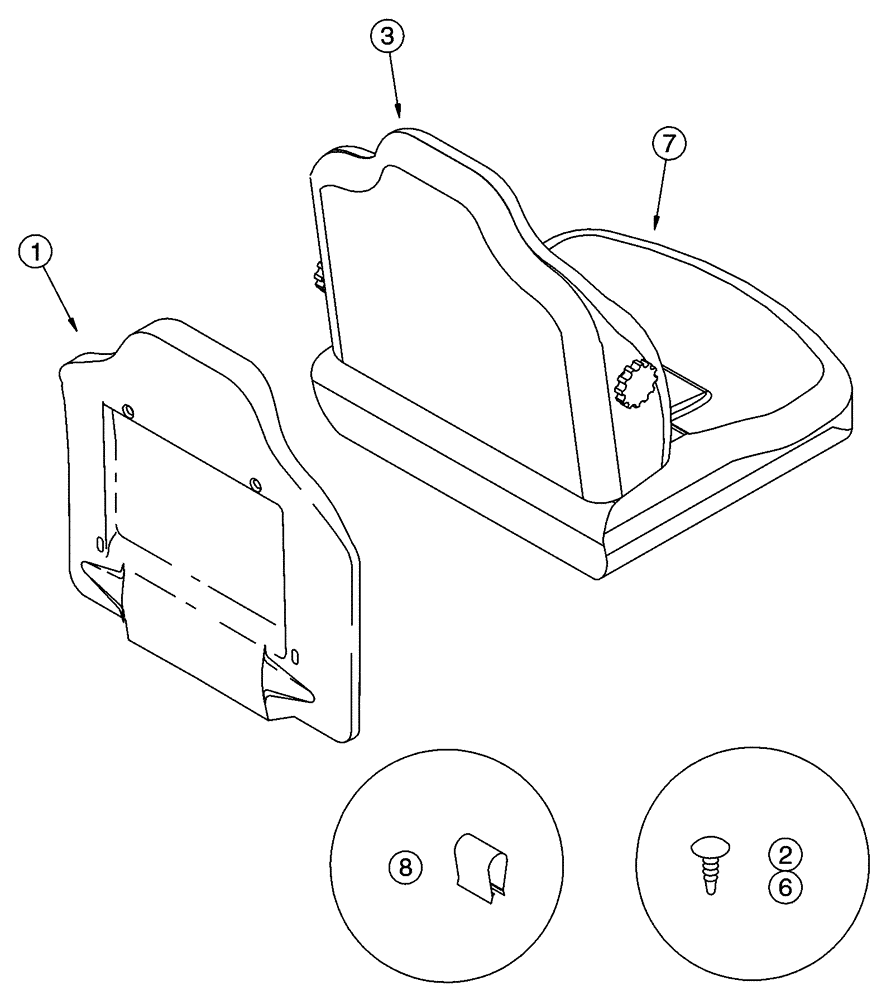

Запчасти Case IH 75XT (09-31) - SEAT - SUSPENSION (09) - CHASSIS
6
1
3
2
8
7
№
Артикул
Название
Примечание
Количество
308307A1
SEAT
Consists Of 1 - 8, Includes Figure 09-30 - 09-33
1шт.
1
291770A1
PANEL
Backrest
1шт.
291764A1
ASSEMBLY
Backrest Pad, Consists Of 2 - 5
1шт.
291760A1
ASSEMBLY
Consists Of 2
1шт.
2
NSS
NOT SOLD SEPARAT
Clip
7шт.
3
NSS
NOT SOLD SEPARAT
Cushion, Backrest
1шт.
4
NSS
NOT SOLD SEPARAT
Emblem, Lumbar, Not Illustrated
1шт.
5
NSS
NOT SOLD SEPARAT
Emblem, Recliner, Not Illustrated
1шт.
291763A1
ASSEMBLY
Cushion, Seat, Consists Of 6 - 8
1шт.
291760A1
ASSEMBLY
Consists Of 6
1шт.
6
NSS
NOT SOLD SEPARAT
Clip
7шт.
7
NSS
NOT SOLD SEPARAT
Cushion, Seat
1шт.
291762A1
ASSEMBLY
Consists Of 8
1шт.
8
NSS
NOT SOLD SEPARAT
Clip
2шт.
Выбрано товаров: 14
