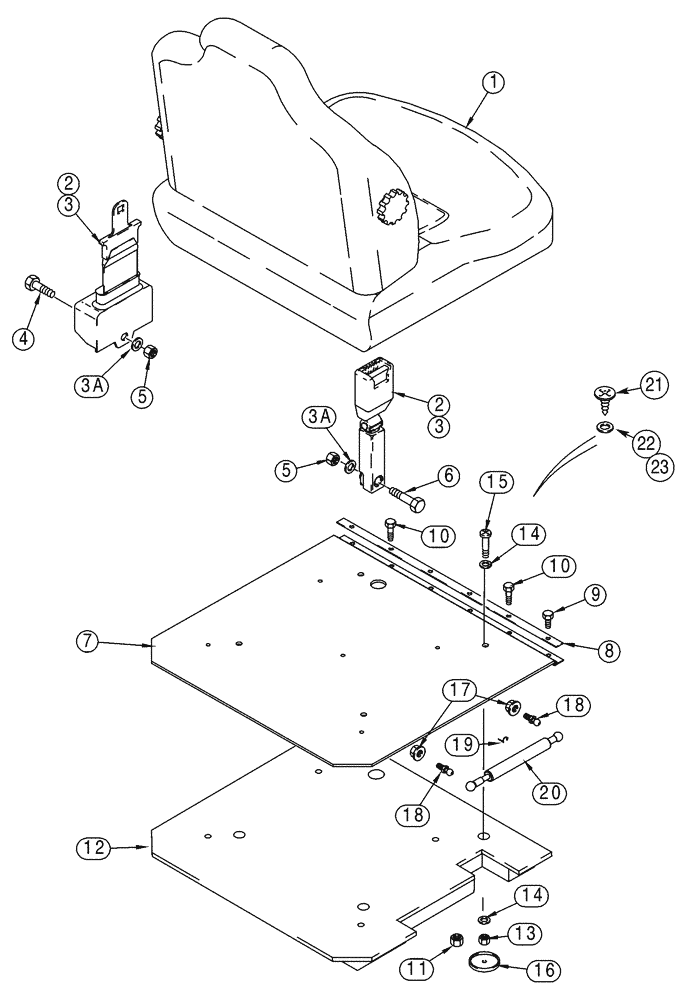

Запчасти Case IH 75XT (09-30) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS

1

308307A1

SEAT

See Figure 09-31 - 09-33

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Includes 3A

1шт.

3

249117A1

SAFETY BELT ,76.20 mm W

If Equipped, Includes 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

Washer

2шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

5

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

6

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

7

302136A1

LARGE PLATE

PLATE, LARGE

1шт.

8

259875A1

CROSSMEMBER

1шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

12

245174A1

INSULATOR

1шт.

13

824-1405

NUT,M5, Cl 5

If Used

5шт.

14

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If used

10шт.

15

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

If Used

5шт.

16

E99641

CAP

If Used

5шт.

17

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

18

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

19

254307A1

CLIP

2шт.

20

189787A2

SHOCK ABSORBER

1шт.

21

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia, If Used

5шт.

22

D136108

WASHER

If Used

5шт.

23

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD, If Used

5шт.
