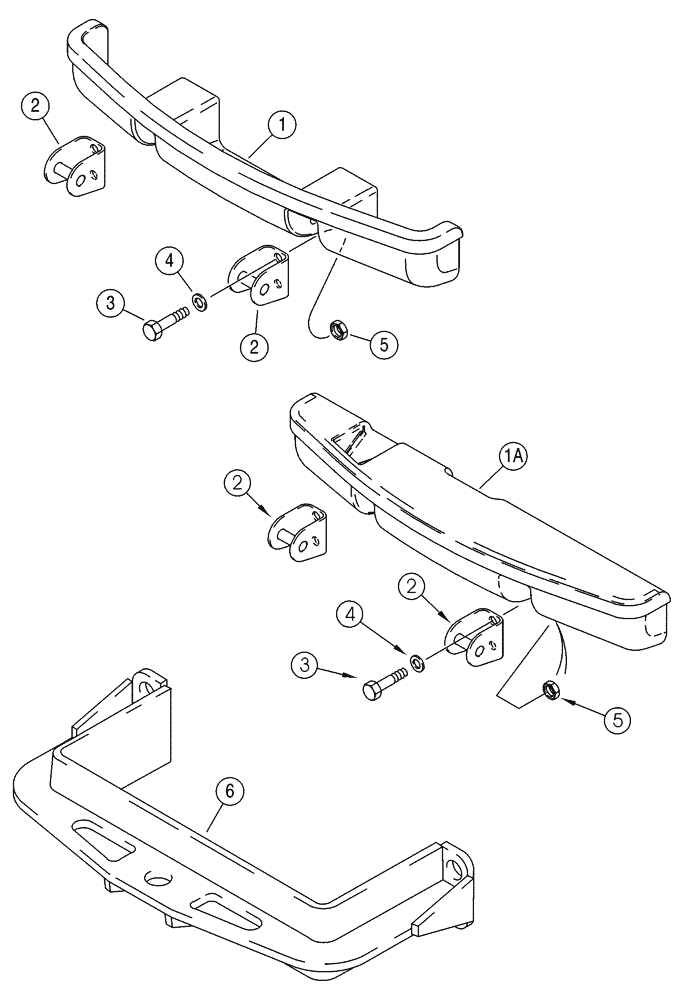

Запчасти Case IH 75XT (09-28) - COUNTERWEIGHTS - DRAWBAR (09) - CHASSIS

1

192275A1

BALANCER

150 lbs., Light, Bumper, Rear

1шт.

1a

248143A1

BALANCER

440 lbs., Heavy, Bumper, Rear

1шт.

2

248938A1

SUPPORT

2шт.

3

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

M20; 10.9

4шт.

6

258483A1

DRAWBAR

If Equipped

1шт.
