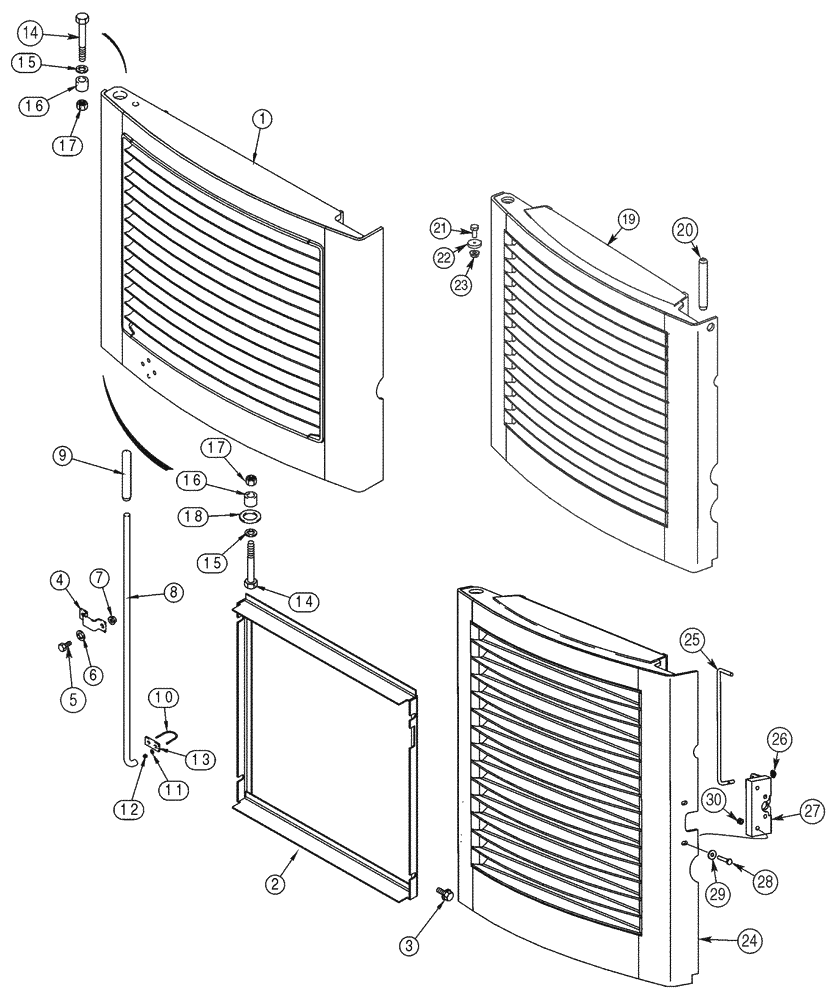

Запчасти Case IH 75XT (09-25) - DOOR, REAR (NORTH AMERICA) (09) - CHASSIS

Door Without Welded Shroud

1шт.

1

280610A1

DOOR

Rear, No Longer Available, Order 352403A1, REF 19

1шт.

2

280672A2

DEFLECTOR

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

4

194152A1

STAPLE

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

8

194280A1

ROD

1шт.

9

1978473C1

HANDLE

1шт.

10

282510A1

U-BOLT

BOLT "U"

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

832-41306

NUT,M6 x 1, Cl 10

2шт.

13

H373779

LARGE PLATE

PLATE, LARGE

1шт.

14

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

16

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

2шт.

17

832-41316

NUT,M16 x 2, Cl 10

2шт.

18

248988A1

THRUST WASHER

Thrust

1шт.

19

352403A1

DOOR ASSY.

Rear, Without Door Latch, Ref 27, If Used

1шт.

Door With Welded Shroud

1шт.

20

1978473C1

HANDLE

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

23

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

24

434568A1

DOOR

Rear, With Door Latch, Ref 27, If Used, For Mounting, See Ref 14 - 18

1шт.

25

434565A1

ROD

Latch Pull

1шт.

26

380751A1

NUT

Push

1шт.

27

R55002

LATCH

1шт.

28

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

29

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

30

832-41406

NUT,M6 x 1, Cl 8

2шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
