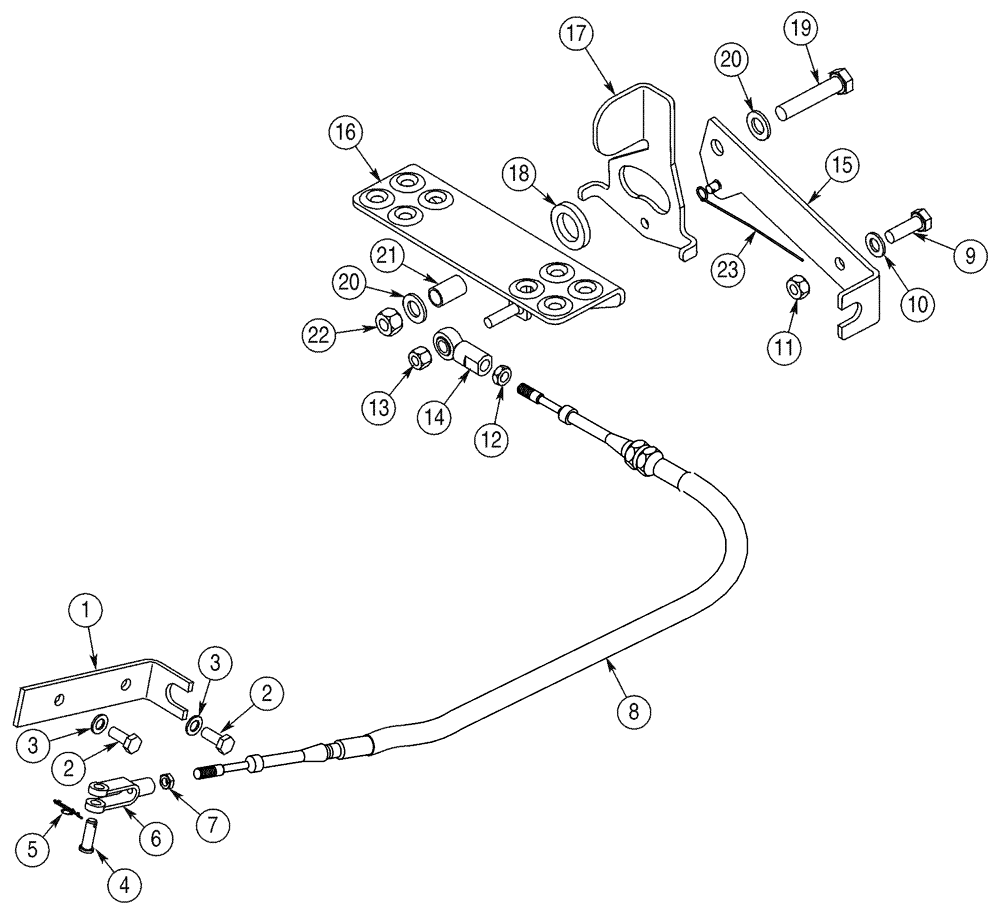

Запчасти Case IH 75XT (09-22) - LINKAGE - AUXILIARY SYSTEM (09) - CHASSIS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

426776A1

BRACKET

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

5

417860A1

COTTER PIN

1шт.

6

427401A1

CLEVIS PIN,1/4" - 28

5/16

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

8

419383A1

CABLE,2490mm L

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

11

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

13

232-4116

NUT,3/8"-16, GC

1шт.

14

S108030

JOINT

1шт.

15

427007A1

SUPPORT ASSY.

1шт.

16

427178A1

PEDAL

1шт.

17

280802A1

LEVER ASSY.

Locking

1шт.

18

283839A1

SPACER

Rubber

1шт.

19

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

21

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Bronze

1шт.

22

832-41412

NUT,M12 x 1.75, Cl 10

M12

1шт.

23

302960A1

SPRING

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
