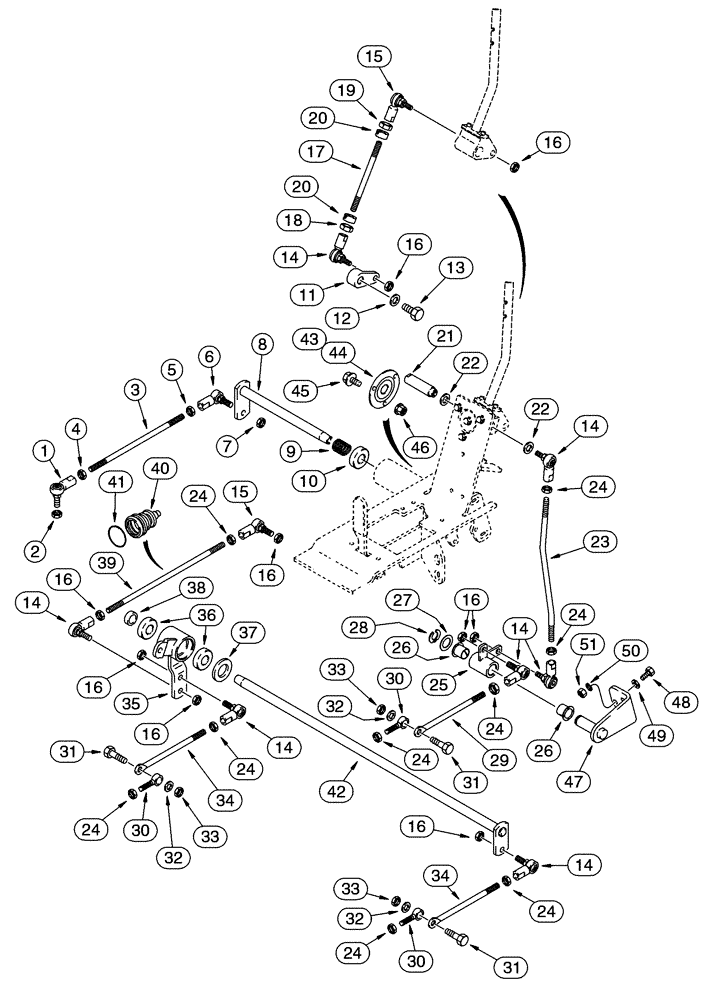

Запчасти Case IH 75XT (09-20) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS

Models With Foot Controls

1шт.

Right Hand

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

1шт.

2

232-4616

LOCK NUT,3/8"-24, GC

1шт.

3

259880A1

STEM

240 mm

1шт.

4

425-116

NUT,3/8" - 24, Gr 5

1шт.

5

125-11011

NUT,3/8"-24, G5, LH

1шт.

6

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

1шт.

7

232-4616

LOCK NUT,3/8"-24, GC

1шт.

8

238968A3

SHAFT

1шт.

9

229383A1

SPRING

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

1шт.

11

237773A1

LEVER ASSY.

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

14

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

7шт.

15

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

16

232-4616

LOCK NUT,3/8"-24, GC

8шт.

17

187234A2

ROD

1шт.

18

425-116

NUT,3/8" - 24, Gr 5

1шт.

19

125-11011

NUT,3/8"-24, G5, LH

1шт.

20

255561A1

COLLAR ASSY.

2шт.

21

237774A1

SHAFT

1шт.

23

305820A1

ROD

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

9шт.

25

305802A1

POWER ARM

1шт.

26

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

2шт.

27

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

49/64 x 1-15/64 x 1/32

1шт.

28

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

29

305809A1

ROD

1шт.

30

D144606

BALL JOINT

3шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

33

232-4116

NUT,3/8"-16, GC

2шт.

34

237300A1

STEM

168 mm

2шт.

35

307850A1

POWER ARM

Includes 36

1шт.

36

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

2шт.

37

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

38

240621A1

SPACER

1шт.

39

300427A1

ROD

300 mm (11-7/8 in)

1шт.

40

132873A1

BELLOWS

1шт.

41

189109A1

SPRING,Compression, 42mm OD

1шт.

42

275022A1

SHAFT

1шт.

43

112380A1

BEARING ASSY

Incl 44

2шт.

44

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

1шт.

45

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

46

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

47

305794A1

PIVOT

1шт.

48

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

50

892-11008

LOCK WASHER,8mm ID

2шт.

51

829-1308

NUT,M8, Cl 10

2шт.

49

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
