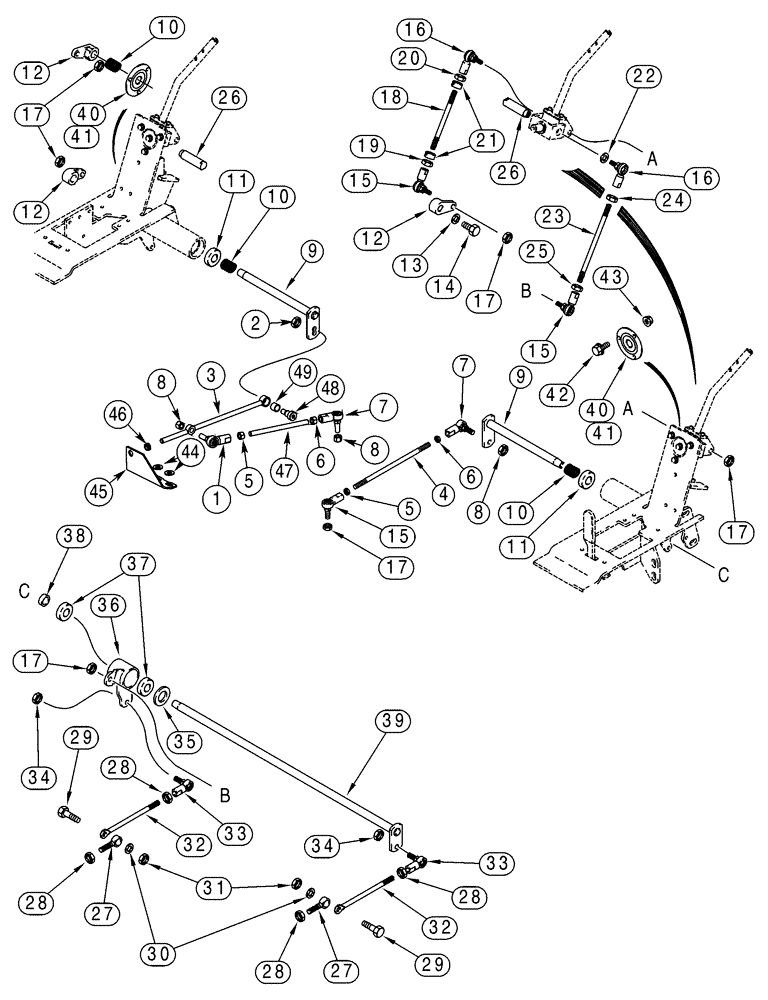

Запчасти Case IH 75XT (09-17) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS

Models Without Foot Controls and With Linkage Bracket, Ref 45

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

1шт.

2

232-4116

NUT,3/8"-16, GC

1шт.

3

330149A1

ROD

1шт.

4

259880A1

STEM

240 mm

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

2шт.

6

125-11011

NUT,3/8"-24, G5, LH

2шт.

7

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

8

232-4616

LOCK NUT,3/8"-24, GC

3шт.

9

238968A3

SHAFT

Replaces 238968A2

2шт.

10

229383A1

SPRING

3шт.

11

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

2шт.

12

237773A1

LEVER ASSY.

3шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

15

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

5шт.

16

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

5шт.

17

232-4616

LOCK NUT,3/8"-24, GC

6шт.

18

187234A2

ROD

2шт.

19

425-116

NUT,3/8" - 24, Gr 5

2шт.

20

125-11011

NUT,3/8"-24, G5, LH

2шт.

21

255561A1

COLLAR ASSY.

4шт.

23

180682A1

STEM

185,5 mm

2шт.

24

125-11011

NUT,3/8"-24, G5, LH

2шт.

25

425-116

NUT,3/8" - 24, Gr 5

2шт.

26

237774A1

SHAFT

2шт.

27

D144606

BALL JOINT

2шт.

28

425-116

NUT,3/8" - 24, Gr 5

4шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

232-4116

NUT,3/8"-16, GC

2шт.

32

237300A1

STEM

168 mm

2шт.

33

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

2шт.

34

232-4616

LOCK NUT,3/8"-24, GC

2шт.

35

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

239908A3

POWER ARM

Assembly, Includes 36, 37

1шт.

36

318531A1

POWER ARM

Replaces 275020A1

1шт.

37

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces 102776A1

2шт.

38

240621A1

SPACER

1шт.

39

275022A1

SHAFT

1шт.

40

112380A1

BEARING ASSY

Incl 41

2шт.

41

102776A1

BEARING, BALL,17 mm ID x 40 mm OD x 12 mm

1шт.

42

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

43

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

45

392597A1

BRACKET

Bushing Support

1шт.

46

330147A1

NYLON BEARING,11.1 mm ID x 15.9 mm OD x 5.1 mm

1шт.

47

330142A1

ROD

Left Hand Control

1шт.

48

121-255

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

1шт.

49

337101A1

BUSHING

Bronze

1шт.

44

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
