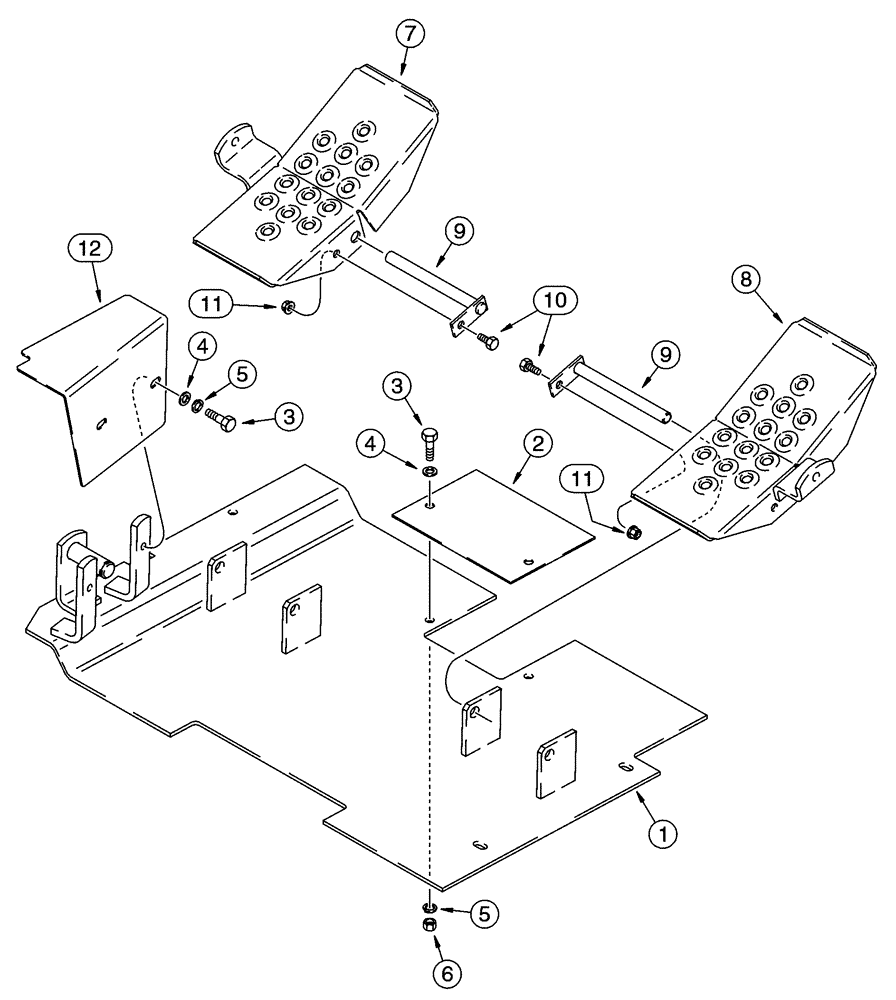

Запчасти Case IH 75XT (09-11) - PLATES, FLOOR - PEDALS (09) - CHASSIS

Models With Foot Controls

1шт.

1

300219A1

LARGE PLATE

PLATE, LARGE Models With Foot Controls, See Figure 09-15, 09-19, 09-20

1шт.

2

309559A1

COVER

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

829-1308

NUT,M8, Cl 10

2шт.

7

307637A1

PEDAL

Left Hand

1шт.

8

307638A1

PEDAL

Right Hand

1шт.

9

H673771

PIN,12.7mm OD x 140mm L

2шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

12

307406A1

COVER

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
