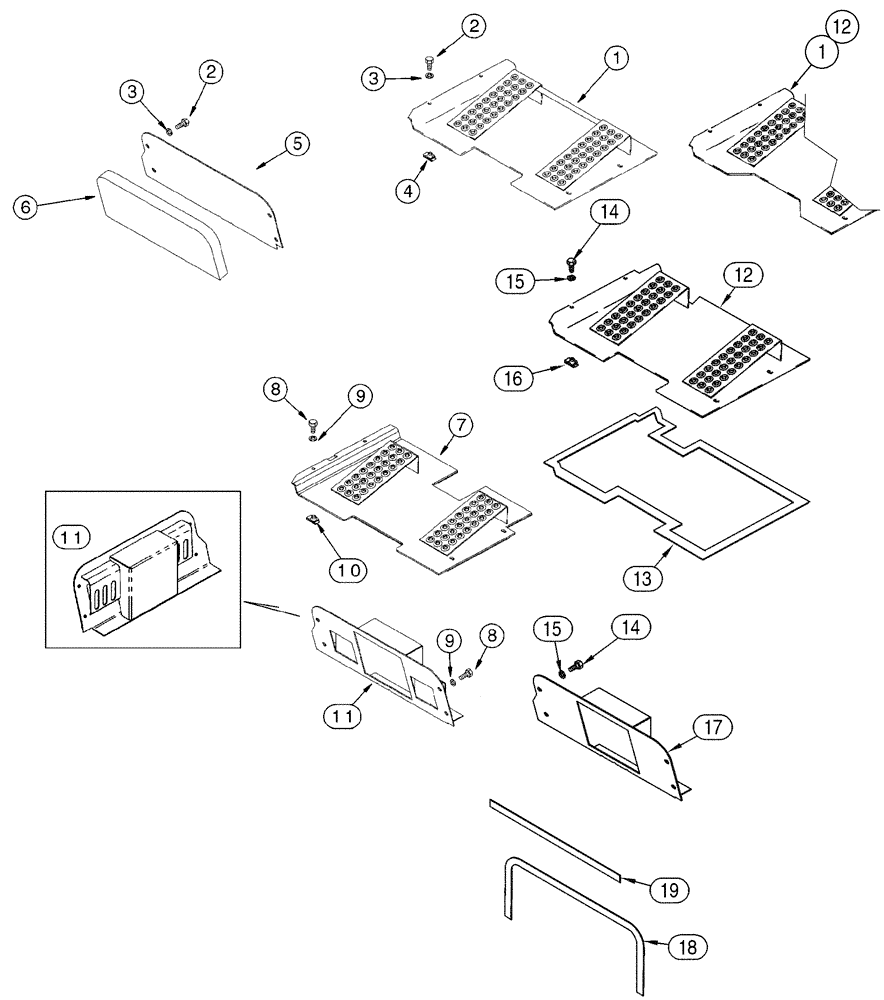

Запчасти Case IH 75XT (09-10) - PLATES, FLOOR (09) - CHASSIS

Models Without Heater

1шт.

1

280841A1

FLOOR

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

4

122158A1

NUT,M8, U

4шт.

5

246441A2

LARGE PLATE

PLATE, LARGE Heel Plate

1шт.

6

249026A1

INSULATOR

If Equipped

1шт.

Models With Floor Heater

1шт.

7

279112A1

FLOOR

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

10

122158A1

NUT,M8, U

4шт.

11

304973A2

COVER

Heel Plate, See Figure 09-49, Used With REF 1, 303239A1

1шт.

Models with Deluxe Heater

1шт.

12

294438A1

FLOOR

1шт.

13

313320A1

SEAL

Floor Plate

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

16

122158A1

NUT,M8, U

4шт.

17

279989A2

COVER

Heel Plate

1шт.

18

313319A1

SEAL

Heel Plate Cover

1шт.

19

313321A1

SEAL

560 mm (22 in), Heel Plate

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.
