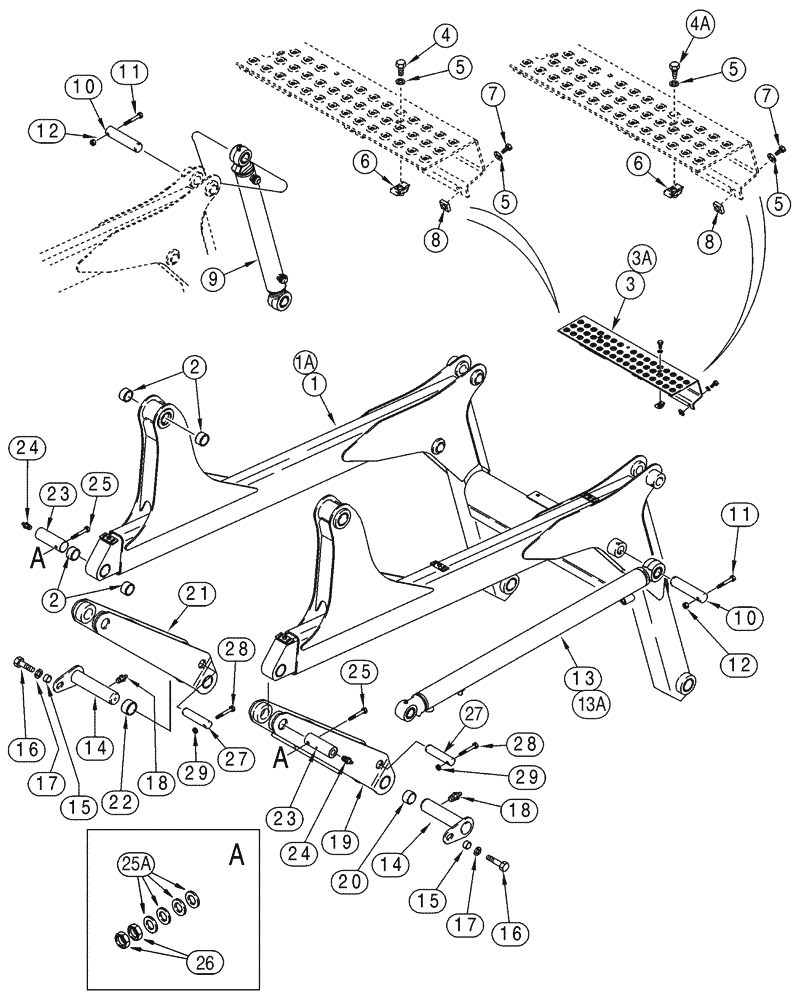

Запчасти Case IH 75XT (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

276208A4

ARM ASSY.

Loader Arm, Includes 1, 2, Used In Production, For Service Order 337837A1, Ref 1, Replaces 276208A3, North American Models -JAF0318921, European Models -JAF0352168

1шт.

276208A5

Loader Arm, Includes 1A, 2, Used In Production, For Service Order 337837A2, Ref 1A, North American Models JAF0318922-, European Models JAF0352169-

1шт.

87415618

LIFT ARM

Replaces 276208A5

1шт.

1

337837A1

ARM ASSY.

Includes 276208A4, Also Includes 2, Also Includes Decals 2, 3, See Figure 09-59, Also Includes Decals 3, 4, See Figure 09-62, North American Models -JAF0318921, European Models -JAF0352168

1шт.

1a

337837A2

ARM ASSY.

Includes 276208A5, Also Includes 2, Also Includes Decals 14 - 16, See Figure 09-59, Also Includes Decals 3, 4, See Figure 09-62, North American Models JAF0318922-, European Models JAF0352169-

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

3

239674A3

LARGE PLATE

PLATE, LARGE Step, Upper, No Longer Used, Order 327537A1

1шт.

3a

327537A2

STEP

620 mm (24-13/32 in) wide, Step, Upper, Replaces 327537A1, North American Models -JAF0318921, European Models -JAF0352168

1шт.

3a

87620408

PLATE

476 mm (18-3/4 in) wide, Step, Upper, Replaces 432327A1, North American Models JAF0318922-, European Models JAF0352169-

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Used with 239674A3

2шт.

4a

779-14819

SELF-TAP SCREW,Hex Hd, M8 x 19

St 8 x 19

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

122158A1

NUT,M8, U

Used With 239674A3

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

9

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk, Bucket Tilt, See Figure 08-23

2шт.

9

259694A3R

75XT

REMAN-HYD CYLINDER

2шт.

9

259694A3C

Return Number

CORE-HYD CYLINDER

2шт.

10

139089A1

PIN,35mm OD x 149mm L

4шт.

11

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

4шт.

13

305509A2

CYLINDER ASSY.

57 ID x 1049 mm strk, Loader Lift, No Longer Available, Order 336187A1, REF 13A, See Service Note, See Figure 08-21

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT, Reman for New P/N 305509A2

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

13a

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk, Loader Lift, See Figure 08-22

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

14

254431A2

PIN

Ear 4.52 mm thick, Replaces 254431A1

2шт.

15

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

19

277133A3

ROD, CONNECTING

Right Hand, Includes 20, Replaces 277133A2

1шт.

20

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

21

277132A2

ROD, CONNECTING

Left Hand, Includes 22

1шт.

22

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

23

179637A1

PIN,45mm OD x 134mm L

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

27

199896A1

PIN,35mm OD x 124mm L

2шт.

28

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

29

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

25a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
