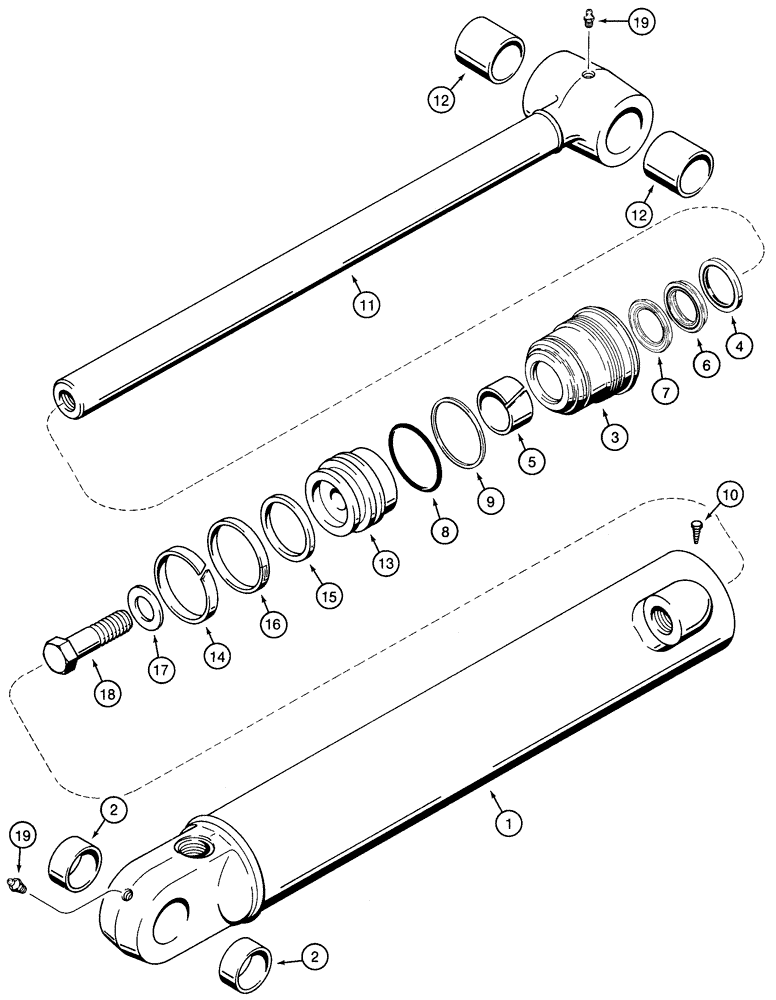

Запчасти Case IH 75XT (08-56) - CYLINDER ASSY - BACKHOE BUCKET (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

1346397C2

CYLINDER ASSY.

70 ID x 559 mm strk, Bucket, Consists Of 1 - 19

1шт.

1346398C2

TUBE

Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland, Packing, Consists Of 3 - 9

1шт.

3

1346403C2

GLAND

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Order 1346409C2

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order 1346409C2

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346405C1

PISTON ROD

38 mm (1-1/2 in) dia, Consists Of 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

D31141

BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L

41 mm (1-5/8 in)

2шт.

13

1346408C1

JACK PISTON

1шт.

14

G105187

RING

1шт.

15

G104439

RING

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1346409C2

SEAL KIT

Consists Of 4 - 9, 14 - 16

1шт.
